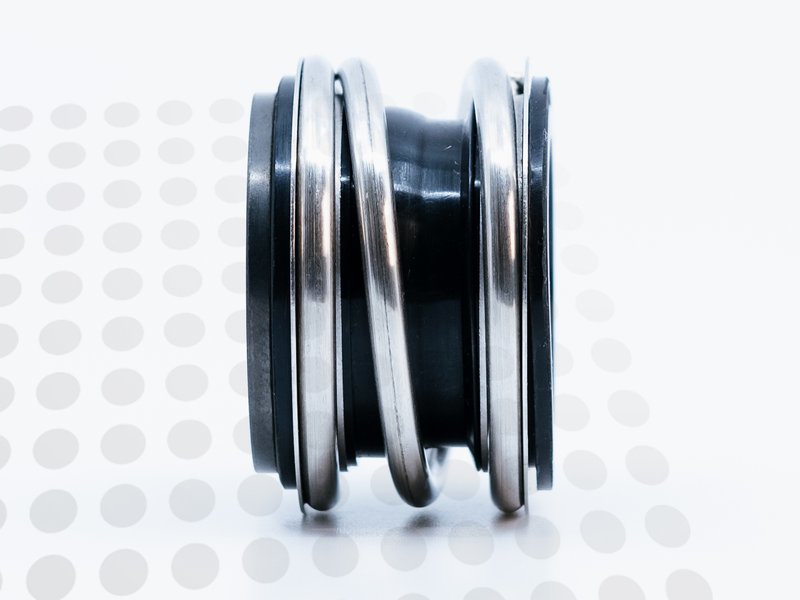

The Qseals 1R-QRB01-0600-S-E is part of the QRB01 group and is designed for 60 mm shaft applications. It features Silicon Carbide (SIC) rotary faces. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES F-B09U-D-YP-0600 and Alfa Laval 31460-0273-6.
| Brand | Qseals |
|---|---|
| Group | QRB01 |
| SKU | 1R-QRB01-0600-S-E |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

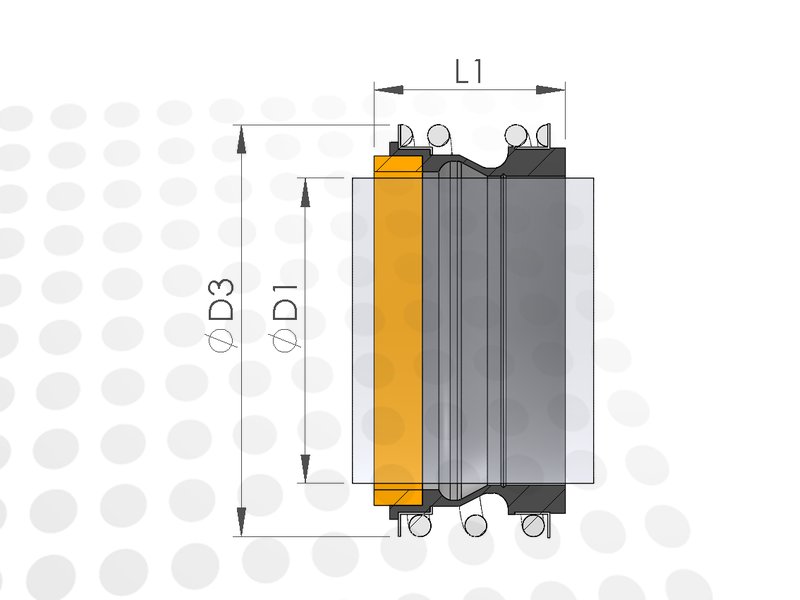

| Shaft size (D1) | 60 mm |
| Rotary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 140 °C |
Other size or material combination?
Search within the Qseals QRB01 product group.
Alternatives
The Qseals 1R-QRB01-0600-S-E is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-B09U-D-YP-0600 |
| Alfa Laval | 31460-0273-6 |
