The Qseals 2C-QCS01ASTS-0200-TTV-R is part of the QCS01ASTS group and is designed for 20 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-T01A-GGZS-0200, AES N-T01AU-GGZS-0200, Burgmann M377S6/20-00-R, and 2 other alternatives.
Technical specifications

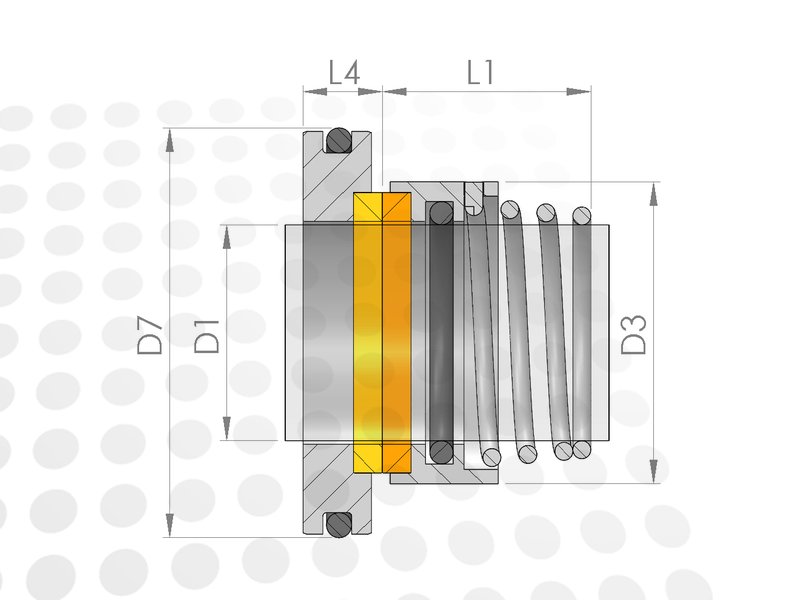

| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 20 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | Viton (FKM VIT) |
| Spring direction | Right |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature limit | 205 °C |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the Qseals QCS01ASTS product group.
Alternatives
The Qseals 2C-QCS01ASTS-0200-TTV-R is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-T01A-GGZS-0200 |
| AES | N-T01AU-GGZS-0200 |
| Burgmann | M377S6/20-00-R |
| Fluiten | SF020 K22K22VEE |
| Vulcan | 0200.8W.R.V.H. |
Applications
The Qseals 2C-QCS01ASTS-0200-TTV-R can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Allweiler | SPF 40 R38 |
| Allweiler | SPF 40 R46 |
| Allweiler | SPF20 |
| Allweiler | ZAS2250 G83F |
