The Qseals 2C-QCS01ST04-0600-CSV-L is part of the QCS01ST04 group and is designed for 60 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-T01U-ADZL-0600, Burgmann M32/60-00-L AQ1VGG, Burgmann M32/60-00-L BQ1VGG, and 5 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QCS01ST04 |
| SKU | 2C-QCS01ST04-0600-CSV-L |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | CONICAL SPRING |
|---|---|

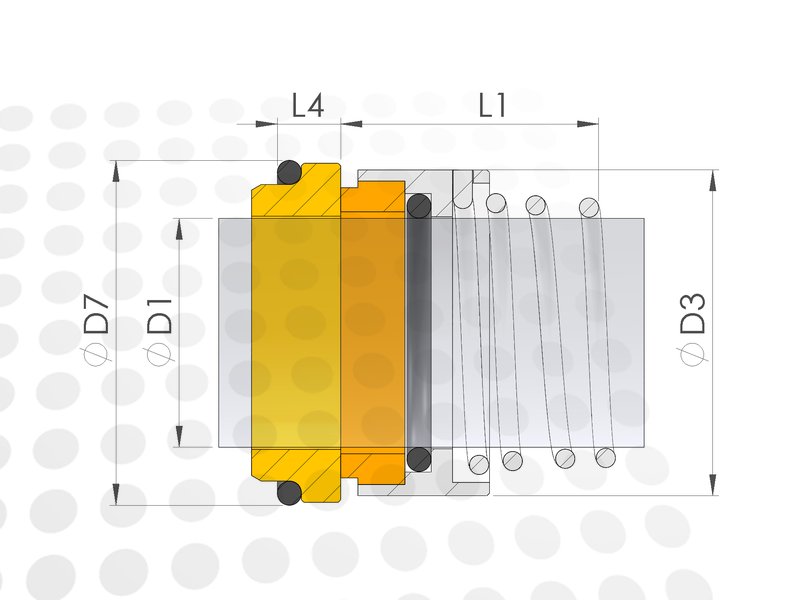

| Shaft size (D1) | 60 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Spring direction | Left |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Qseals QCS01ST04 product group.
Alternatives
The Qseals 2C-QCS01ST04-0600-CSV-L is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
