The Qseals 2C-QCS03ST09-0380-SSE-R is part of the QCS03ST09 group and is designed for 38 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-T01DBU-DDYR-0430, Burgmann H12N/38-00-R Q1Q1EGG, Burgmann H177GN/38-00-R Q1Q1EGG, and 2 other alternatives.
Technical specifications

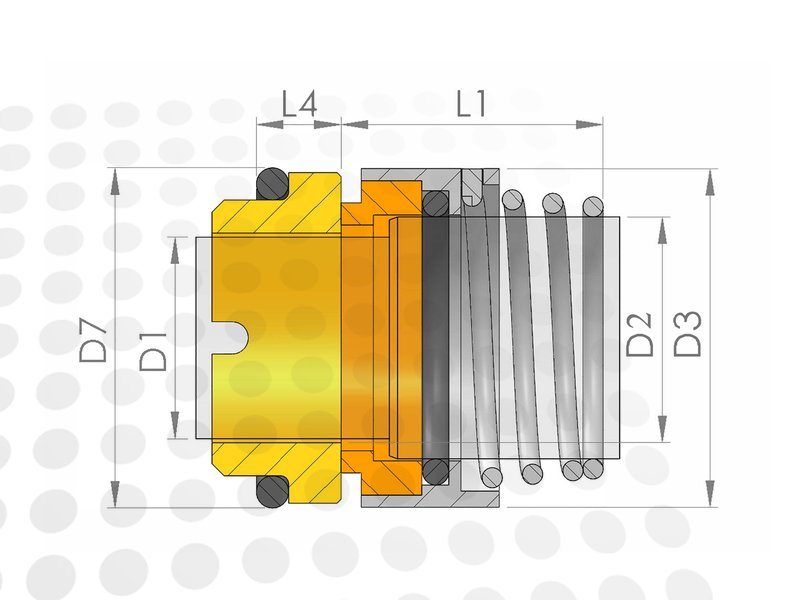

| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 38 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |
| Spring direction | Right |
| Upper Shaftsize (D2) | |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature limit | 140 °C |
| Pressure limit | 55 bar |
Other size or material combination?
Search within the Qseals QCS03ST09 product group.
Alternatives
The Qseals 2C-QCS03ST09-0380-SSE-R is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-T01DBU-DDYR-0430 |
| Burgmann | H12N/38-00-R Q1Q1EGG |
| Burgmann | H177GN/38-00-R Q1Q1EGG |
| Burgmann | H17GN/38-00-R Q1Q1EGG |
| Vulcan | 0430.82.R.E.S. |
