The Qseals 2C-QCS07ST01-0180-UCN-L is part of the QCS07ST01 group and is designed for 18 mm shaft applications. It features a Ceramic (CER) rotary face paired with a Carbon (CAR) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-T03U-BAXL-0180 and Fluiten S3 018 CZ31GEE LH.
| Brand | Qseals |
|---|---|
| Group | QCS07ST01 |
| SKU | 2C-QCS07ST01-0180-UCN-L |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

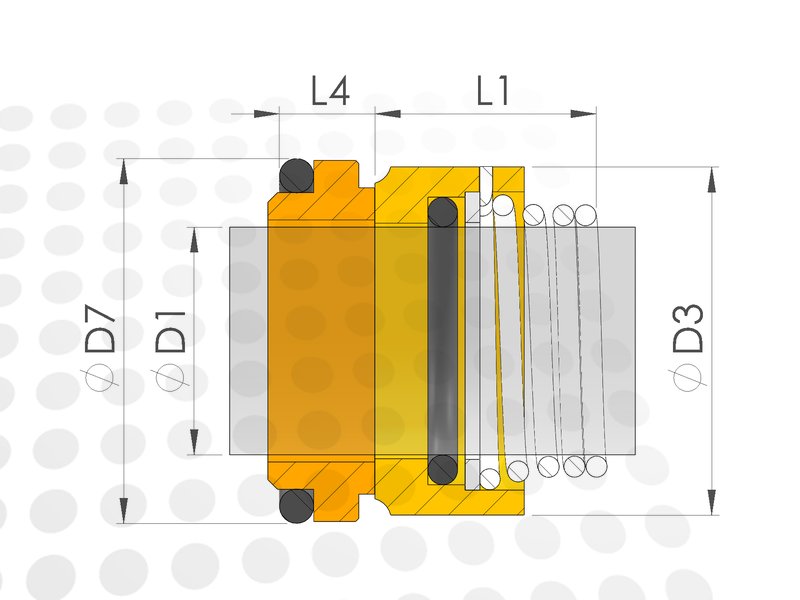

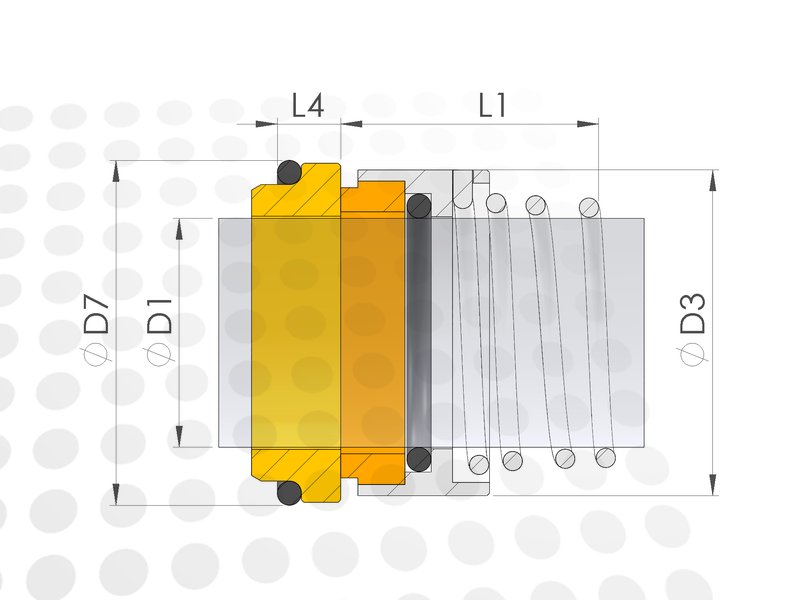

Technical specifications
| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 18 mm |
| Rotary face | Ceramic (CER) |
| Stationary face | Carbon (CAR) |
| Elastomers | NBR (NITRILE) |
| Spring direction | Left |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Qseals QCS07ST01 product group.
Alternatives
The Qseals 2C-QCS07ST01-0180-UCN-L is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-T03U-BAXL-0180 |
| Fluiten | S3 018 CZ31GEE LH |
