The Qseals 2C-QCS07ST01-0200-SSV-L is part of the QCS07ST01 group and is designed for 20 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-T03U-DDZL-0200, Fluiten S3 020 U32U31VEE LH, and Vulcan 0200.12.L.V.S..
| Brand | Qseals |
|---|---|
| Group | QCS07ST01 |
| SKU | 2C-QCS07ST01-0200-SSV-L |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

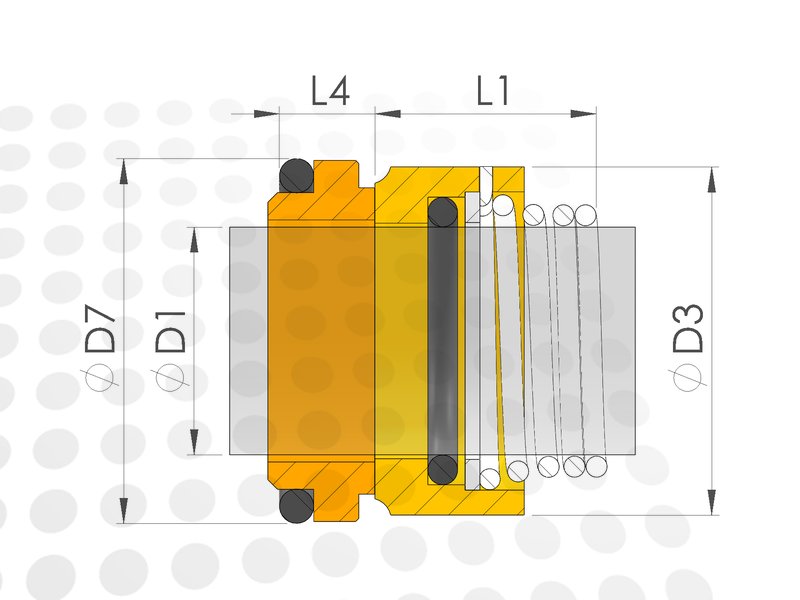

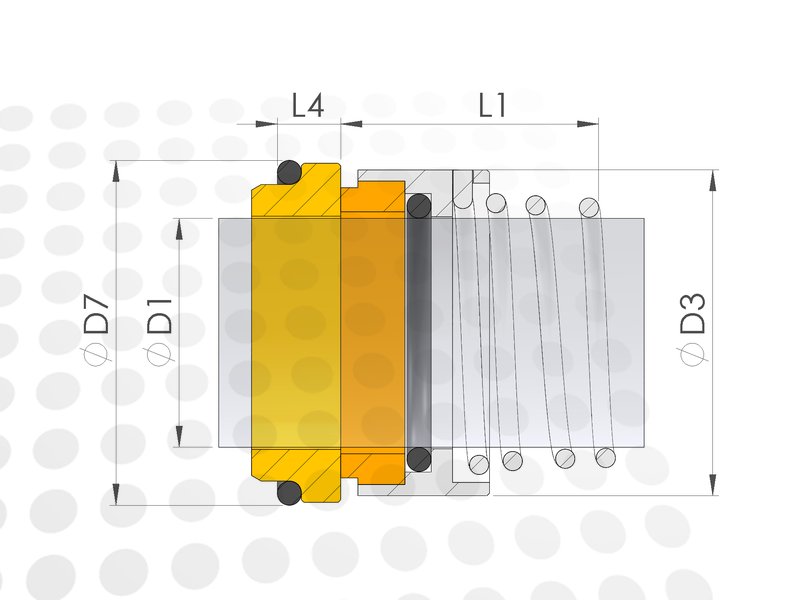

Technical specifications
| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 20 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Spring direction | Left |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Qseals QCS07ST01 product group.
Alternatives
The Qseals 2C-QCS07ST01-0200-SSV-L is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-T03U-DDZL-0200 |
| Fluiten | S3 020 U32U31VEE LH |
| Vulcan | 0200.12.L.V.S. |
