The Qseals 2C-QCS07ST01-0250-SSV-R is part of the QCS07ST01 group and is designed for 25 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-T03U-DDZR-0250, Fluiten S3 025 U32U31VEE RH, and Vulcan 0250.12.R.V.S..
| Brand | Qseals |
|---|---|
| Group | QCS07ST01 |
| SKU | 2C-QCS07ST01-0250-SSV-R |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

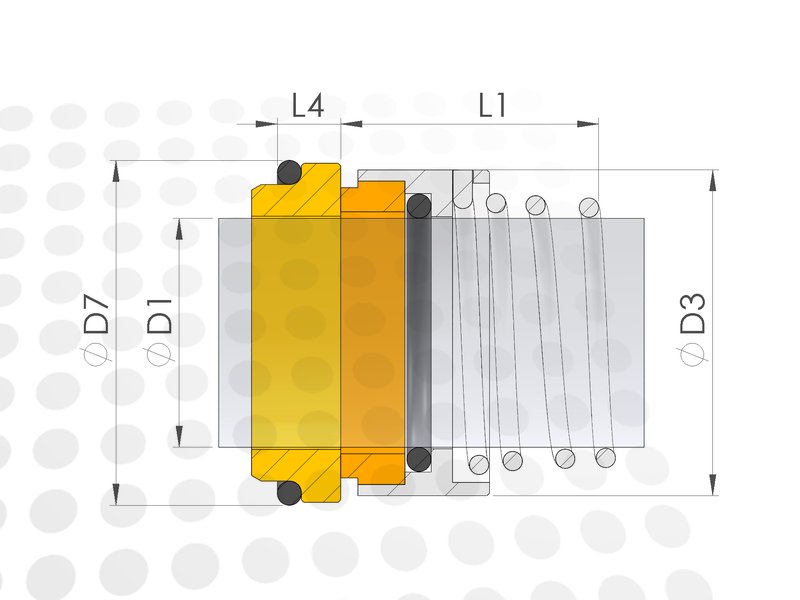

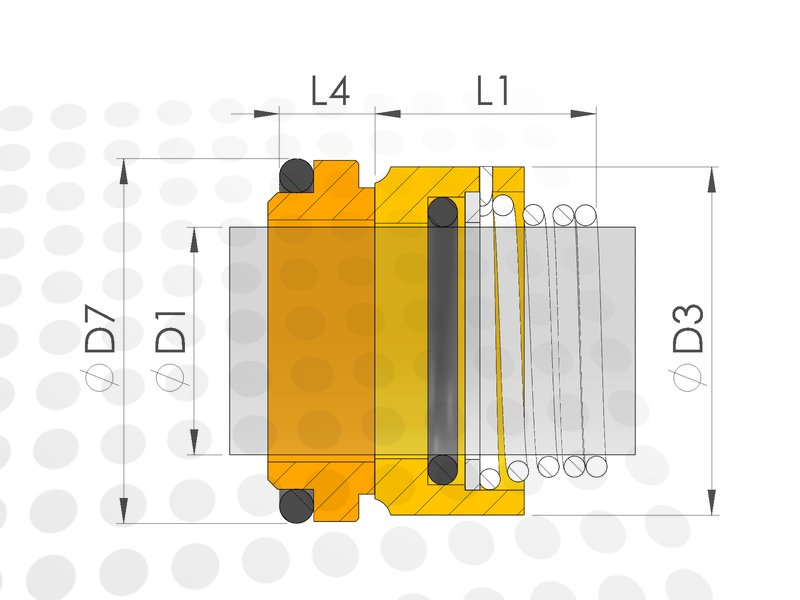

Technical specifications
| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 25 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Spring direction | Right |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Qseals QCS07ST01 product group.
Alternatives
The Qseals 2C-QCS07ST01-0250-SSV-R is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-T03U-DDZR-0250 |
| Fluiten | S3 025 U32U31VEE RH |
| Vulcan | 0250.12.R.V.S. |
Applications
The Qseals 2C-QCS07ST01-0250-SSV-R can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
