The Qseals 2C-QCS07ST01-0420-TTV-R is part of the QCS07ST01 group and is designed for 42 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Fluiten S3 042 K22K21VEE RH.
| Brand | Qseals |
|---|---|
| Group | QCS07ST01 |
| SKU | 2C-QCS07ST01-0420-TTV-R |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

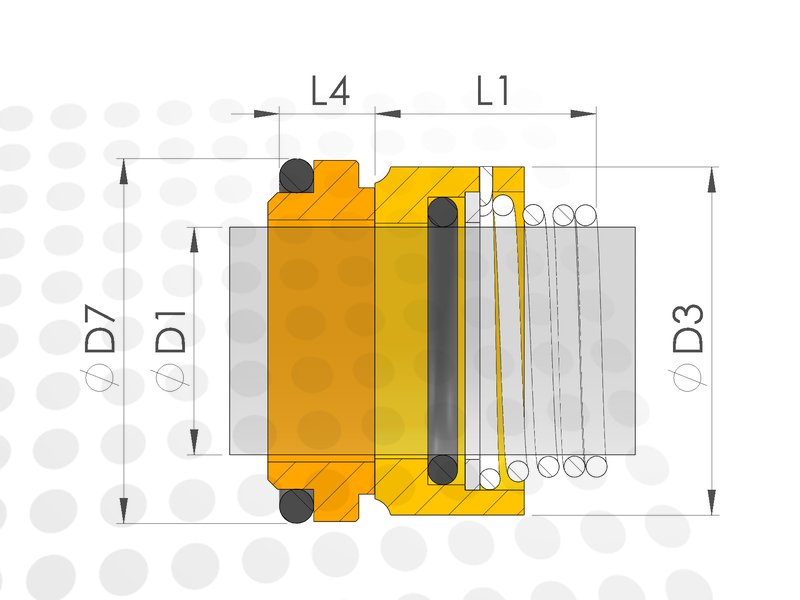

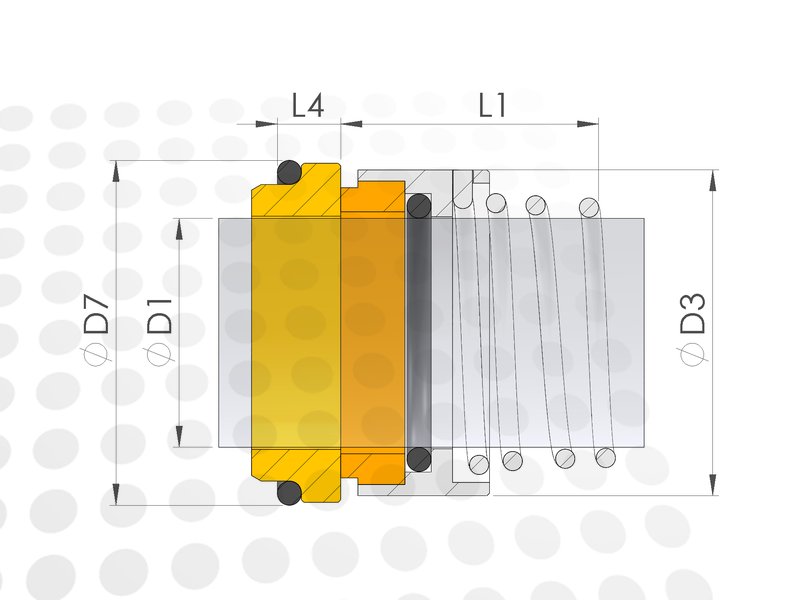

Technical specifications
| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 42 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | Viton (FKM VIT) |
| Spring direction | Right |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Qseals QCS07ST01 product group.
Alternatives
The Qseals 2C-QCS07ST01-0420-TTV-R is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| Fluiten | S3 042 K22K21VEE RH |
