The Qseals 2C-QCS11ST02-0250-UCE-R is part of the QCS11ST02 group and is designed for 25 mm shaft applications. It features a ceramic rotary face paired with a carbon stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-T04D-BAYR-0250, LATTY 534 025 V B EP RH, Ricambi 0250-UT-VBE, and Vulcan 0250.13DIN.R.E.B..
| Brand | Qseals |
|---|---|
| Group | QCS11ST02 |
| SKU | 2C-QCS11ST02-0250-UCE-R |
No commitment. Receive a price and technical data sheet within 24 hours.

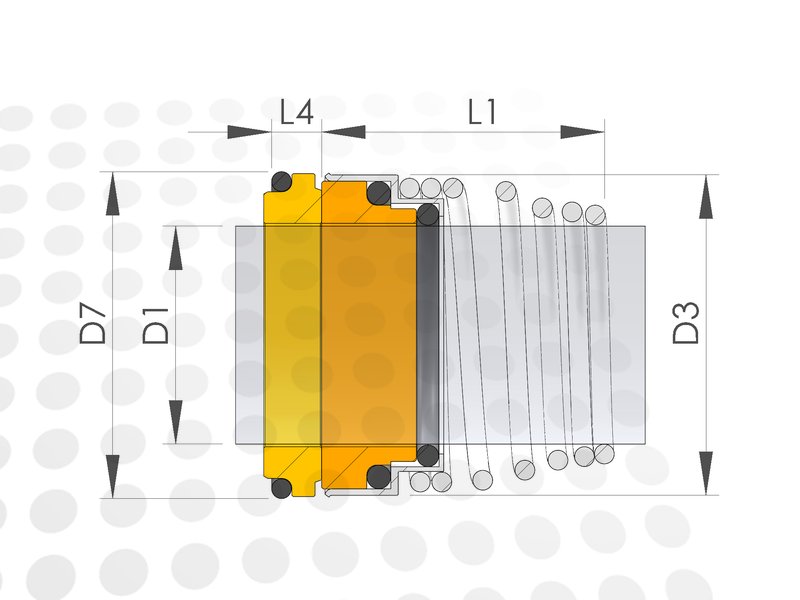

Technical specifications
| Category | CONICAL SPRING |
|---|---|
| Shaft size | 25 mm |
| Rotary face | Ceramic |
| Stationary face | Carbon |
| Elastomers | EPDM |
| Spring direction | Right |
| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QCS11ST02-0250-UCE-R is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-T04D-BAYR-0250 |
| LATTY | 534 025 V B EP RH |
| Ricambi | 0250-UT-VBE |
| Vulcan | 0250.13DIN.R.E.B. |
Applications
The Qseals 2C-QCS11ST02-0250-UCE-R can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Lowara | CN 40-200-55 |
| Lowara | CN 40-200-75 |
| Lowara | CN 50-160-55 |
| Brand | SKU |
|---|---|
| Lowara | CN 50-160-75 |
| Lowara | CN 65-125-55 |
| Lowara | CN 65-125-75 |
