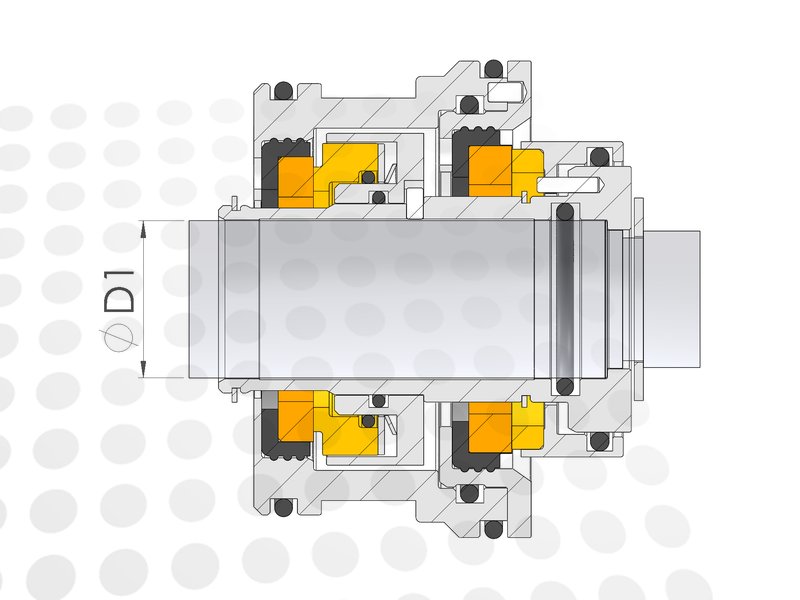

The Qseals 2C-QFLYGT31-0350-TTN-CUN is part of the QFLYGT31 group and is designed for 35 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-T05VC-GGXABX1-0350, Flygt 641 50 00, Flygt 641 50 01, and 3 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QFLYGT31 |
| SKU | 2C-QFLYGT31-0350-TTN-CUN |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size (D1) | 35 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | NBR (NITRILE) |
| Outer rotary face | Carbon (CAR) |
| Outer stationary face | Ceramic (CER) |
| Outer elastomer | NBR |
| Temperature Limit | 120 °C |
| Pressure Limit | 30 bar |
Other size or material combination?
Search within the Qseals QFLYGT31 product group.
Alternatives
The Qseals 2C-QFLYGT31-0350-TTN-CUN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-T05VC-GGXABX1-0350 |
| Flygt | 641 50 00 |
| Flygt | 641 50 01 |
| Flygt | 641 50 02 |
| Flygt | 770 85 30 |
| LATTY | FTC 35 |
Applications
The Qseals 2C-QFLYGT31-0350-TTN-CUN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
