The Qseals 2C-QFLYGT33STS-0240-TTN is part of the QFLYGT33STS group and is designed for 24 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-T05Z-GGX1-0240-L, Flygt 713 90 00, and Grindex 50 420 00 (Lower Seal).
| Brand | Qseals |
|---|---|
| Group | QFLYGT33STS |
| SKU | 2C-QFLYGT33STS-0240-TTN |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

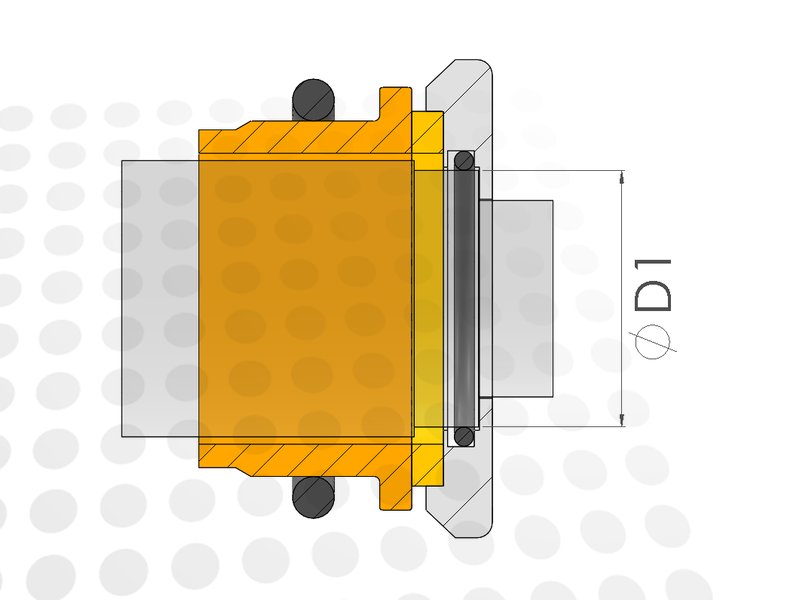

| Shaft size (D1) | 24 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | NBR (NITRILE) |
| Temperature limit | 120 °C |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the Qseals QFLYGT33STS product group.
Applications
The Qseals 2C-QFLYGT33STS-0240-TTN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
Alternatives
The Qseals 2C-QFLYGT33STS-0240-TTN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-T05Z-GGX1-0240-L |
| Flygt | 713 90 00 |
| Grindex | 50 420 00 (Lower Seal) |
