The Qseals 2C-QFMS29-0603-ASR is part of the QFMS29 group and is designed for 60.3 mm shaft applications. It features a Antimony Carbon (ANT CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Neoprene (NEO) elastomers. It serves as a direct replacement for the AES N-M02SHU-HDNS-0603, Howden G60224, and Howden G60236.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

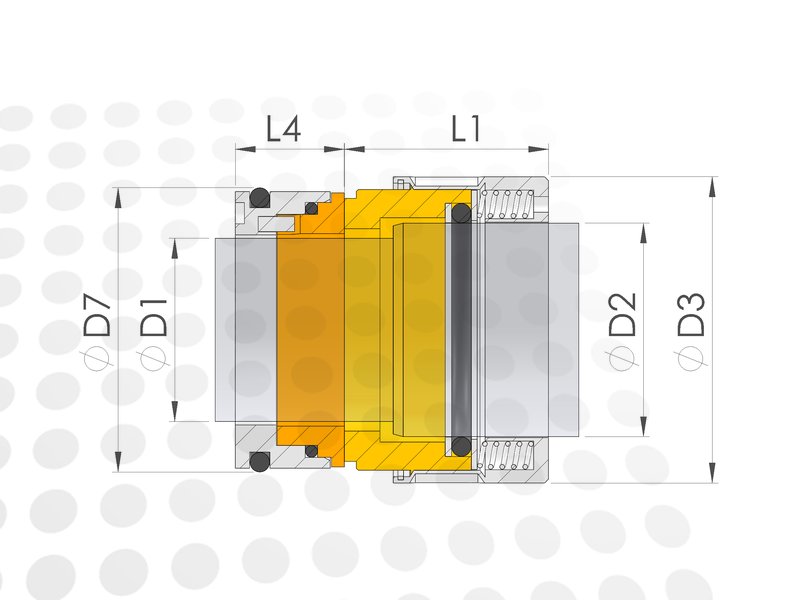

| Shaft size (D1) | 60.3 mm |
| Rotary face | Antimony Carbon (ANT CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Neoprene (NEO) |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the Qseals QFMS29 product group.
Alternatives
The Qseals 2C-QFMS29-0603-ASR is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-M02SHU-HDNS-0603 |
| Howden | G60224 |
| Howden | G60236 |
Applications
The Qseals 2C-QFMS29-0603-ASR can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Howden | WRV204 Mk5 |
| Howden | WRV204 Mk6 |
| Howden | WRV205 |
| Howden | XRV204 |
