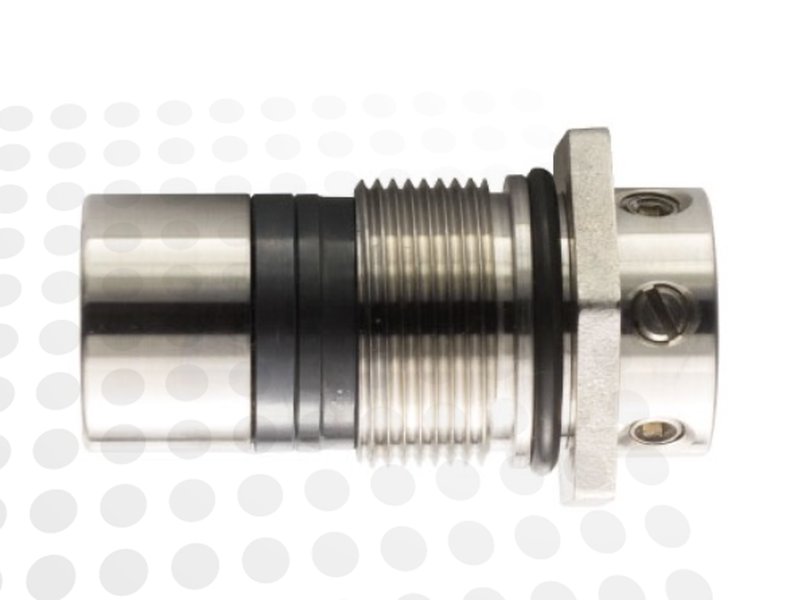

The Qseals 2C-QGRC-0160-SSK is part of the QGRC group and is designed for 16 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Kalrez (FFKM) elastomers. The maximum recommended operating temperature is 270°C. It is a compatible alternative to the Grundfos 96511846 (HQQK).
| Brand | Qseals |
|---|---|
| Group | QGRC |
| SKU | 2C-QGRC-0160-SSK |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

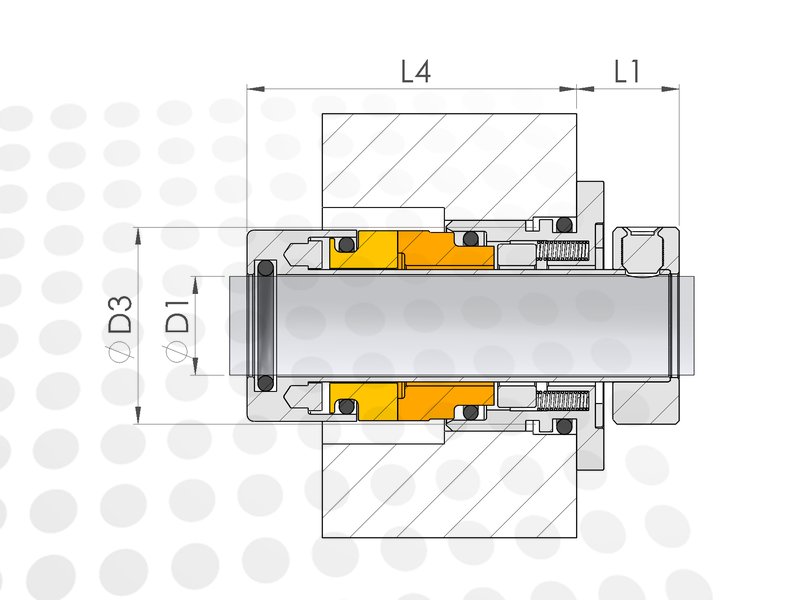

| Shaft size (D1) | 16 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Kalrez (FFKM) |
| Temperature limit | 270 °C |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the Qseals QGRC product group.
Alternatives
The Qseals 2C-QGRC-0160-SSK is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| Grundfos | 96511846 (HQQK) |
