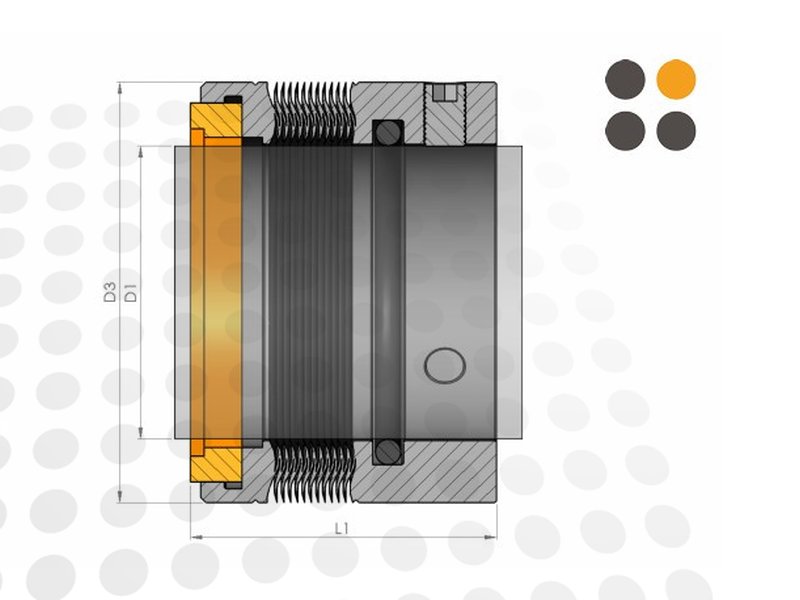

The Qseals 2C-QMB01ST46-1000-SSV is part of the QMB01ST46 group and is designed for 100 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Fluiten TSMA0100 U32U31VEE.
| Brand | Qseals |
|---|---|
| Group | QMB01ST46 |
| SKU | 2C-QMB01ST46-1000-SSV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | METAL BELLOW |
|---|---|
| Shaft size (D1) | 100 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |

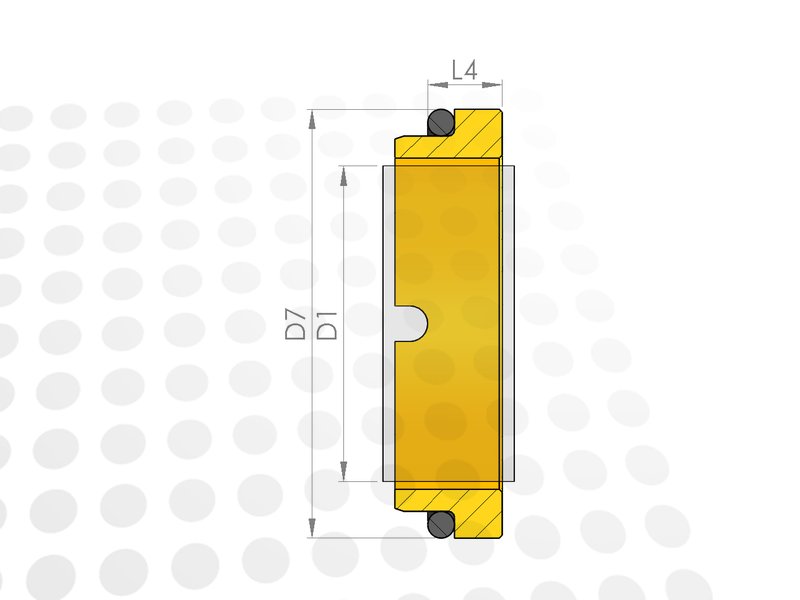

| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature limit | 205 °C |
| Pressure limit | 25 bar |
Other size or material combination?
Search within the Qseals QMB01ST46 product group.
Alternatives
The Qseals 2C-QMB01ST46-1000-SSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| Fluiten | TSMA0100 U32U31VEE |
