The Qseals 2C-QMS02ST46-0500-SSH is part of the QMS02ST46 group and is designed for 50 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses HNBR (HNBR) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Hecker HN435/50 Q1Q1X5GG.
| Brand | Qseals |
|---|---|
| Group | QMS02ST46 |
| SKU | 2C-QMS02ST46-0500-SSH |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | MULTI SPRING |
|---|---|

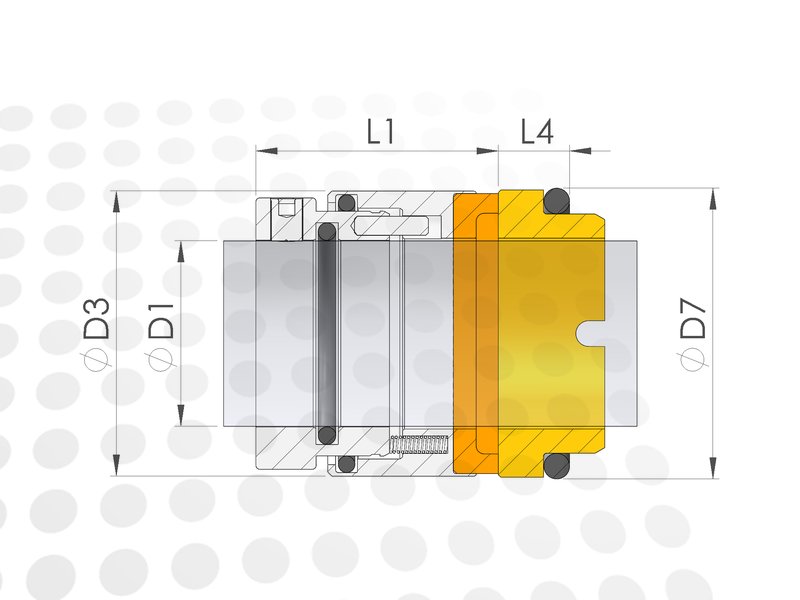

| Shaft size (D1) | 50 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | HNBR (HNBR) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 25 bar |
Other size or material combination?
Search within the Qseals QMS02ST46 product group.
Alternatives
The Qseals 2C-QMS02ST46-0500-SSH is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| Hecker | HN435/50 Q1Q1X5GG |
