The Qseals 2C-QMS02STWA-0539-TSK is part of the QMS02STWA group and is designed for 53.9 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Kalrez (FFKM) elastomers. The maximum recommended operating temperature is 275°C.
| Brand | Qseals |
|---|---|
| Group | QMS02STWA |
| SKU | 2C-QMS02STWA-0539-TSK |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | MULTI SPRING |
|---|---|

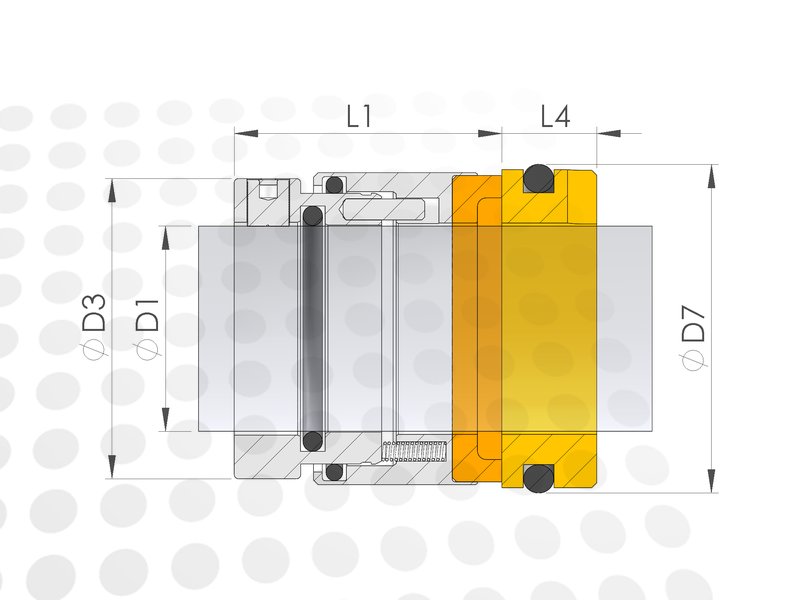

| Shaft size (D1) | 53.9 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Kalrez (FFKM) |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 275 °C |
| Pressure Limit | 25 bar |
Other size or material combination?
Search within the Qseals QMS02STWA product group.
