The Qseals 2C-QMS26STS-0508-TSV is part of the QMS26STS group and is designed for 50.8 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-M010H-GDZ1-0508 and Vulcan 0508.194.V.H..
| Brand | Qseals |
|---|---|
| Group | QMS26STS |
| SKU | 2C-QMS26STS-0508-TSV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

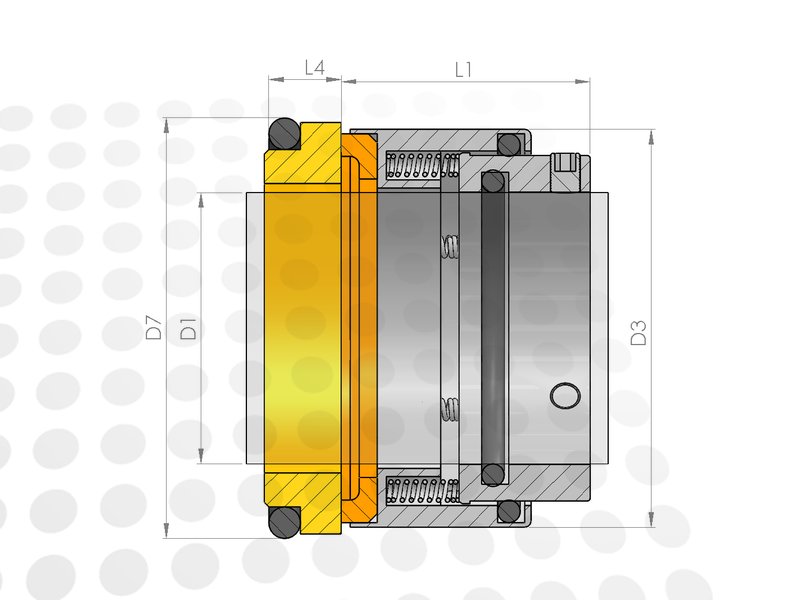

Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size (D1) | 50.8 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 30 bar |
Other size or material combination?
Search within the Qseals QMS26STS product group.
Applications
The Qseals 2C-QMS26STS-0508-TSV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
Alternatives
The Qseals 2C-QMS26STS-0508-TSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-M010H-GDZ1-0508 |
| Vulcan | 0508.194.V.H. |
