The Qseals 2C-QMS26STS-1200-CJV is part of the QMS26STS group and is designed for 120 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Ni-Resist Cast Iron (NI-RESIST) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C.
| Brand | Qseals |
|---|---|
| Group | QMS26STS |
| SKU | 2C-QMS26STS-1200-CJV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

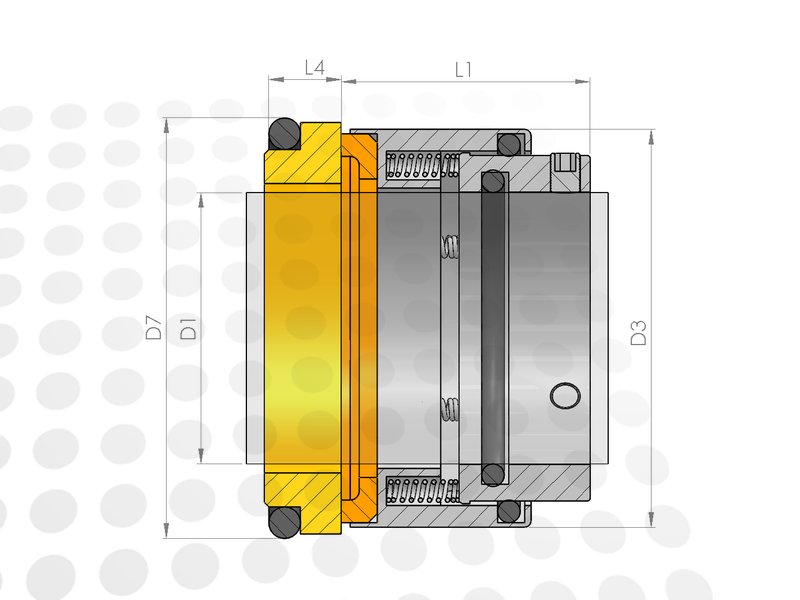

Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size (D1) | 120 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Ni-Resist Cast Iron (NI-RESIST) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 30 bar |
Other size or material combination?
Search within the Qseals QMS26STS product group.
