The Qseals 2C-QMS30STS-0762-SSV is part of the QMS30STS group and is designed for 76.2 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-SAIH-DDZ1-0762, LATTY LI-10783, LATTY LI HLX 3.000 U3 U3 EP, and Vulcan W-0762.41.V.SS..
| Brand | Qseals |
|---|---|
| Group | QMS30STS |
| SKU | 2C-QMS30STS-0762-SSV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

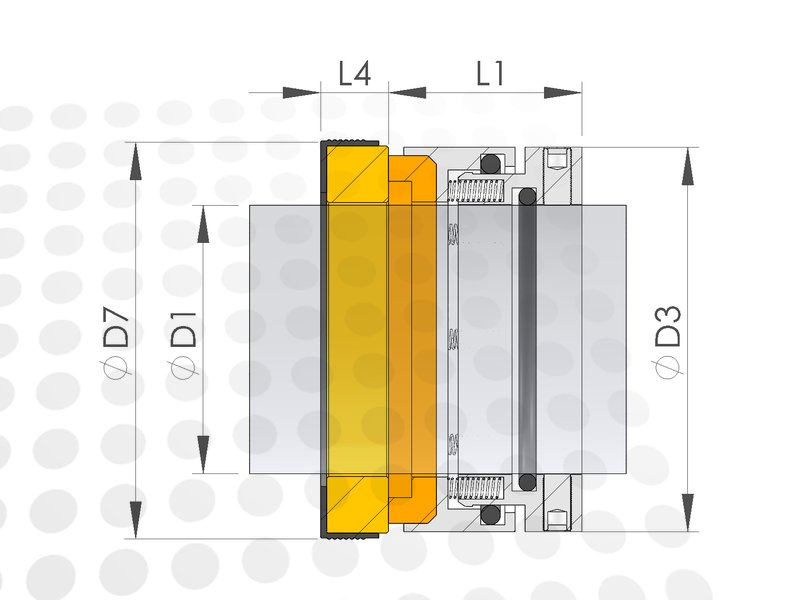

| Shaft size (D1) | 76.2 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 30 bar |
Other size or material combination?
Search within the Qseals QMS30STS product group.
Applications
The Qseals 2C-QMS30STS-0762-SSV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
Alternatives
The Qseals 2C-QMS30STS-0762-SSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-SAIH-DDZ1-0762 |
| LATTY | LI-10783 |
| LATTY | LI HLX 3.000 U3 U3 EP |
| Vulcan | W-0762.41.V.SS. |
