The Qseals 2C-QMS30STS-0762-TSV is part of the QMS30STS group and is designed for 76.2 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-SAIH-GDZ1-0762, Burgmann 24-M74-SPL, Hidrostal 8DM-G3.0 (Lower seal), and 2 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QMS30STS |
| SKU | 2C-QMS30STS-0762-TSV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

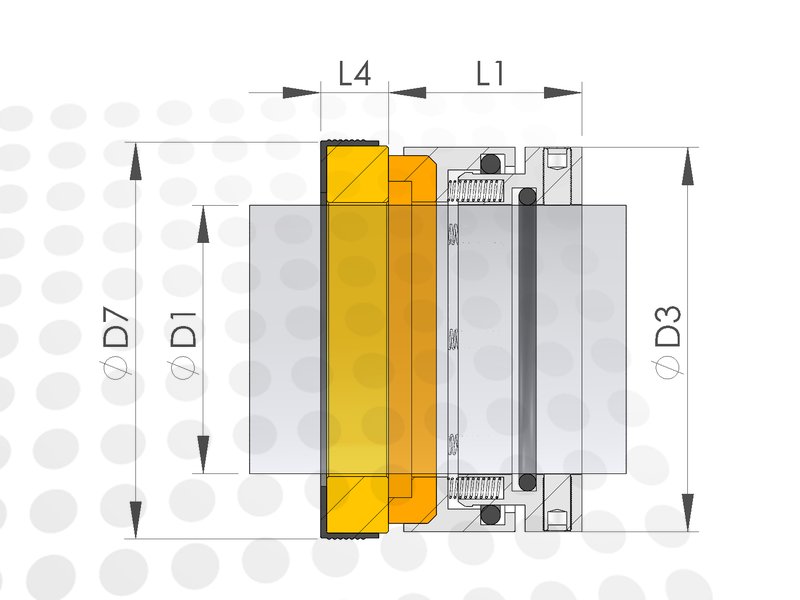

| Shaft size (D1) | 76.2 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 30 bar |
Other size or material combination?
Search within the Qseals QMS30STS product group.
Applications
The Qseals 2C-QMS30STS-0762-TSV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
Alternatives
The Qseals 2C-QMS30STS-0762-TSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-SAIH-GDZ1-0762 |
| Burgmann | 24-M74-SPL |
| Hidrostal | 8DM-G3.0 (Lower seal) |
| Hidrostal | 8DM-X3.0/C |
| Hidrostal | 8DM-X3.0D |
