The Qseals 2C-QPS02ST50-0190-CSV is part of the QPS02ST50 group and is designed for 19 mm shaft applications. It features a carbon rotary face paired with a silicon carbide stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-P02-ADZ1-0190, Burgmann MG920/19-G50 BQ1VFF, Burgmann MG920/19-G50 BQ1VGG, and 3 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QPS02ST50 |
| SKU | 2C-QPS02ST50-0190-CSV |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PARALLEL SPRING |
|---|---|
| Shaft size | 19 mm |
| Rotary face | Carbon |
| Stationary face | Silicon Carbide |
| Elastomers | Viton |

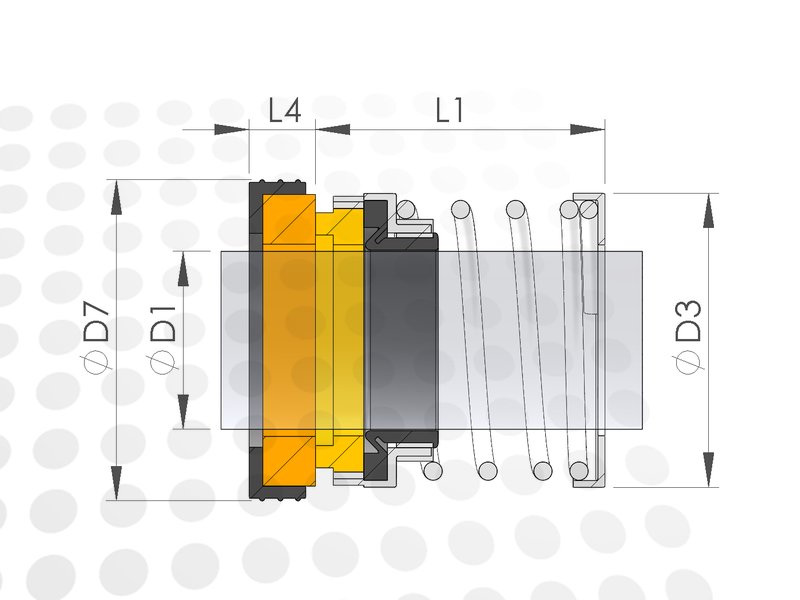

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QPS02ST50-0190-CSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-P02-ADZ1-0190 |
| Burgmann | MG920/19-G50 BQ1VFF |
| Burgmann | MG920/19-G50 BQ1VGG |
| None | 513 019 B U3 V |
| Sealol | 043-BFC-SEF-019 |
| Vulcan | 0190.20.V.D. |
