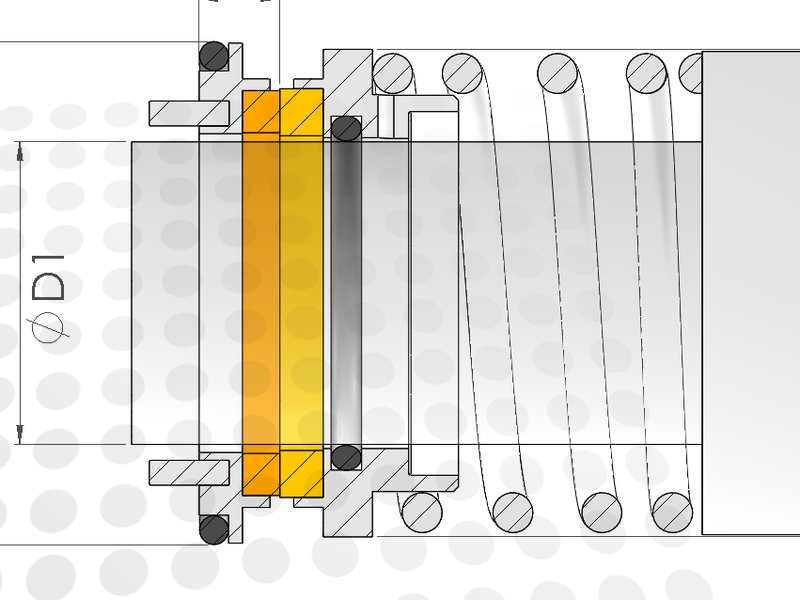

The Qseals 2C-QPS13-0365-SSN is part of the QPS13 group and is designed for 36.5 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-P011U-DDX1-0365 and Vulcan 0365.89.N.S..
Technical specifications
| Category | PARALLEL SPRING |
|---|---|
| Shaft size (D1) | 36.5 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | NBR (NITRILE) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature limit | 120 °C |
| Pressure limit | 25 bar |
Other size or material combination?
Search within the Qseals QPS13 product group.
Alternatives
The Qseals 2C-QPS13-0365-SSN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-P011U-DDX1-0365 |
| Vulcan | 0365.89.N.S. |
Applications
The Qseals 2C-QPS13-0365-SSN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Viking | 4225 |
| Viking | K-KK 4124B |
| Viking | K-KK 4224B |
| Viking | K-LL 4123 |
| Viking | K-LL 4125 |
| Viking | K-LL 4223 |
| Viking | K-LL 4225 |
| Viking | K-LL 4625 |
