The Qseals 2C-QPS18ST55-0444-ATN is part of the QPS18ST55 group and is designed for 44.4 mm shaft applications. It features a Antimony Carbon (ANT CAR) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-P04U-HGX1-0444 and Bell & Gossett 186835.
| Brand | Qseals |
|---|---|
| Group | QPS18ST55 |
| SKU | 2C-QPS18ST55-0444-ATN |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

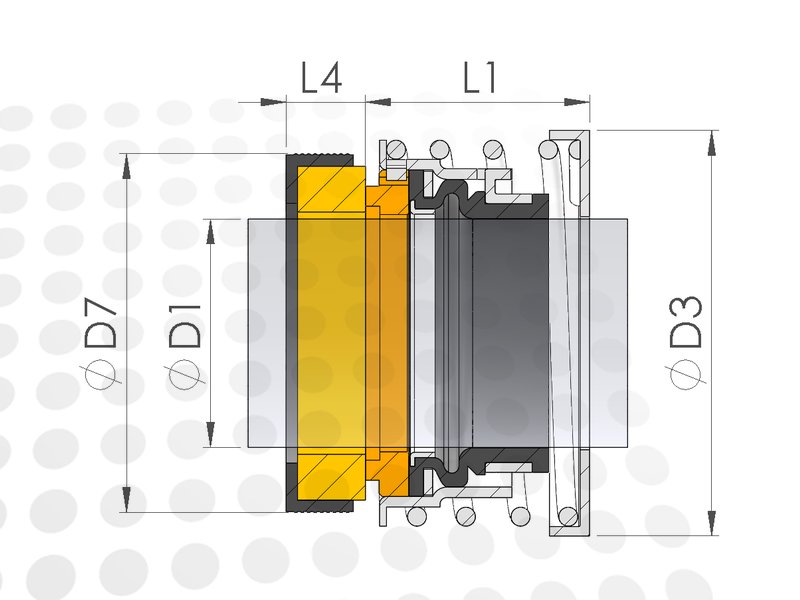

Technical specifications
| Category | PARALLEL SPRING |
|---|---|
| Shaft size (D1) | 44.4 mm |
| Rotary face | Antimony Carbon (ANT CAR) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | NBR (NITRILE) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 25 bar |
Other size or material combination?
Search within the Qseals QPS18ST55 product group.
Alternatives
The Qseals 2C-QPS18ST55-0444-ATN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-P04U-HGX1-0444 |
| Bell & Gossett | 186835 |
Applications
The Qseals 2C-QPS18ST55-0444-ATN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Baldor Reliance | Motor Frame 180 or 210 |
| Bell & Gossett | VSC 6X6X12 |
| Bell & Gossett | VSC 8X8X10-1/2 |
