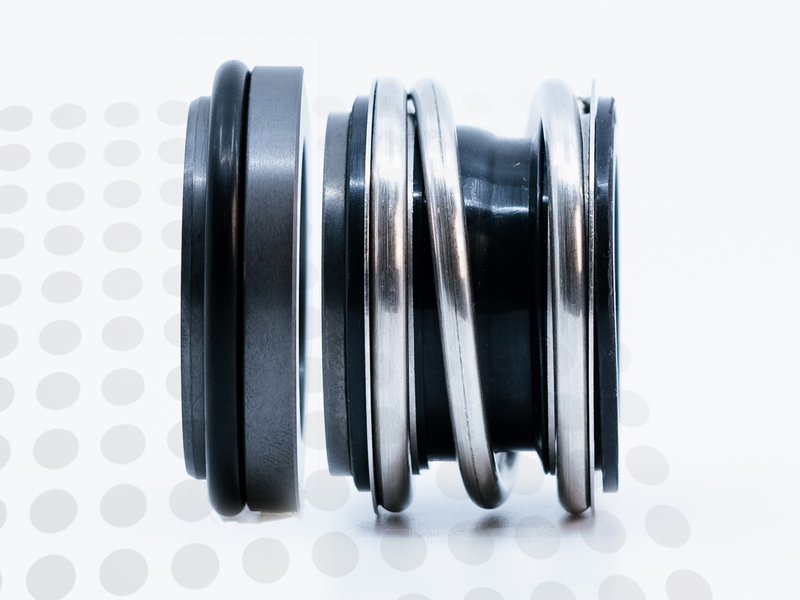

The Qseals 2C-QRB01ST04-0150-SSE is part of the QRB01ST04 group and is designed for 15 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Burgmann MG1/15-G4 Q1Q1EGG.
| Brand | Qseals |
|---|---|
| Group | QRB01ST04 |
| SKU | 2C-QRB01ST04-0150-SSE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 15 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |

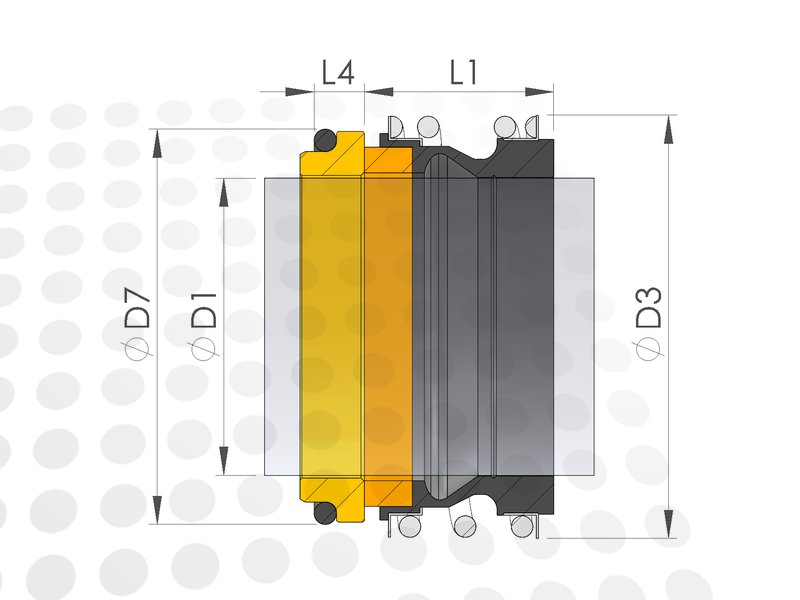

| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
Other size or material combination?
Search within the Qseals QRB01ST04 product group.
Alternatives
The Qseals 2C-QRB01ST04-0150-SSE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| Burgmann | MG1/15-G4 Q1Q1EGG |
