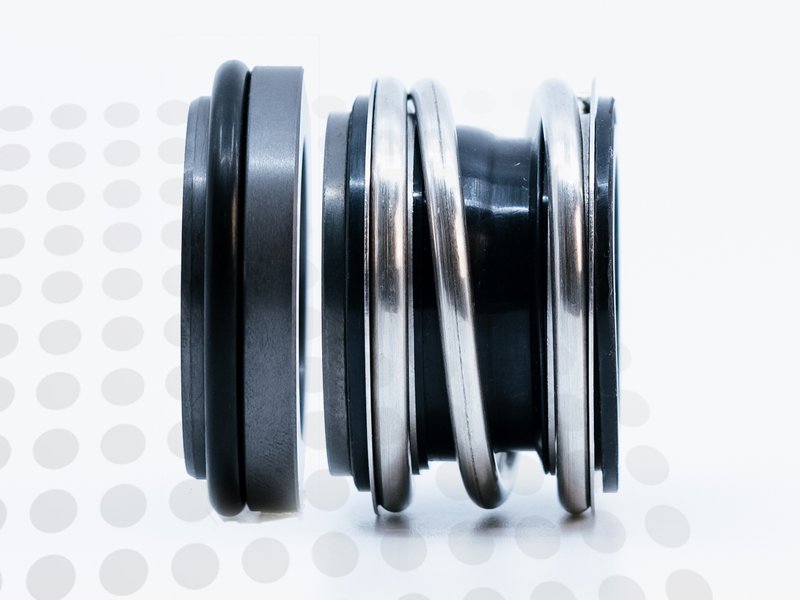

The Qseals 2C-QRB01ST04-0220-SSV is part of the QRB01ST04 group and is designed for 22 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-B02S-DDZ1-0220, Burgmann MG1/22-G4 Q1Q1VGG, and Vulcan 0220.19.V.SS..
| Brand | Qseals |
|---|---|
| Group | QRB01ST04 |
| SKU | 2C-QRB01ST04-0220-SSV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

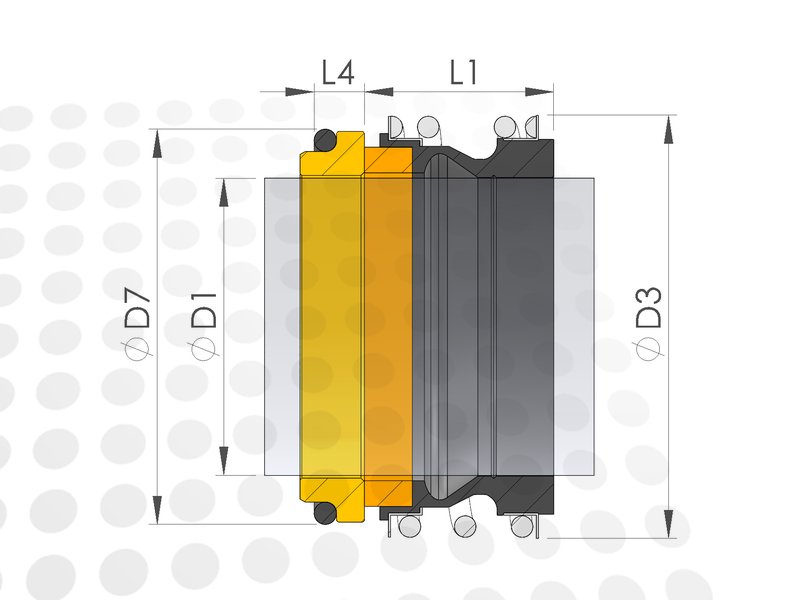

| Shaft size (D1) | 22 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB01ST04 product group.
Alternatives
The Qseals 2C-QRB01ST04-0220-SSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B02S-DDZ1-0220 |
| Burgmann | MG1/22-G4 Q1Q1VGG |
| Vulcan | 0220.19.V.SS. |
