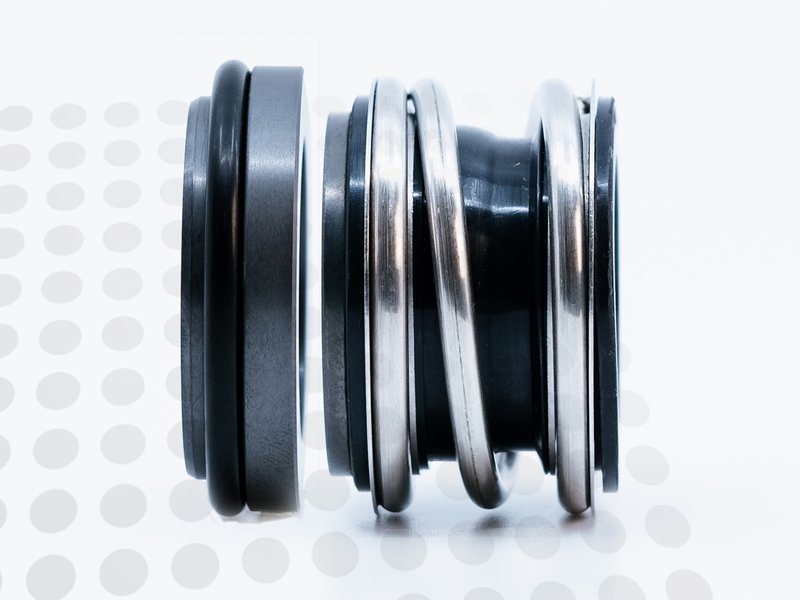

The Qseals 2C-QRB01ST04-0400-TTV is part of the QRB01ST04 group and is designed for 40 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C.
| Brand | Qseals |
|---|---|
| Group | QRB01ST04 |
| SKU | 2C-QRB01ST04-0400-TTV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

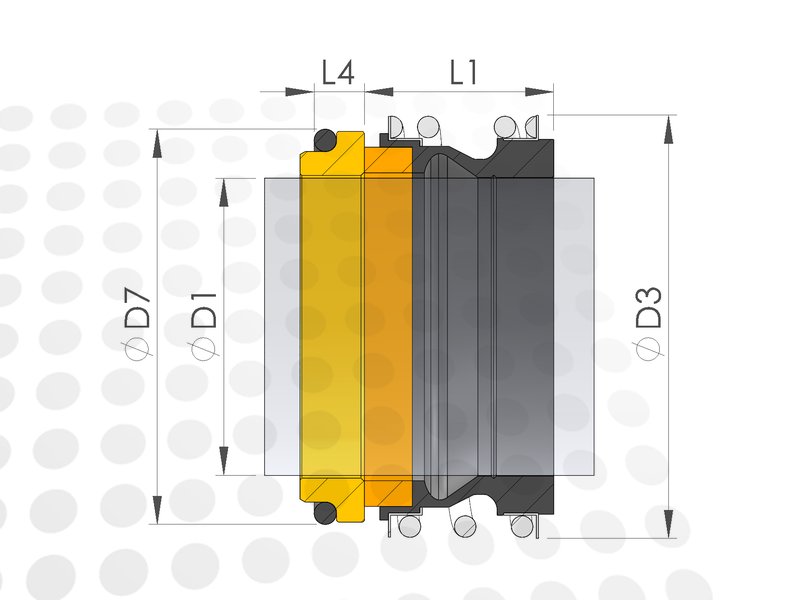

Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 40 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB01ST04 product group.
