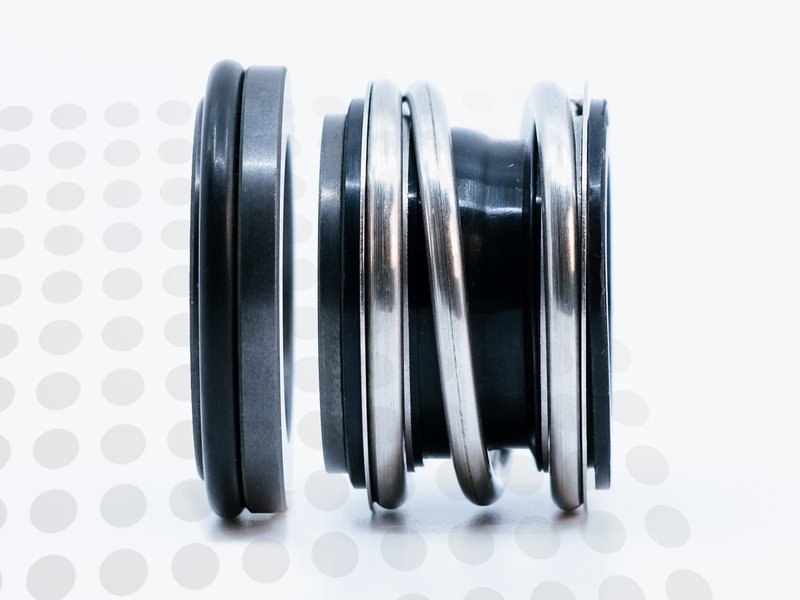

The Qseals 2C-QRB01ST06-0680-SSE is part of the QRB01ST06 group and is designed for 68 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B02SS-DDY1-0680, AES N-B09SSU-DDY1-0680, Anga 68 A1/A5 - QQEGG, and 6 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB01ST06 |
| SKU | 2C-QRB01ST06-0680-SSE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 68 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |

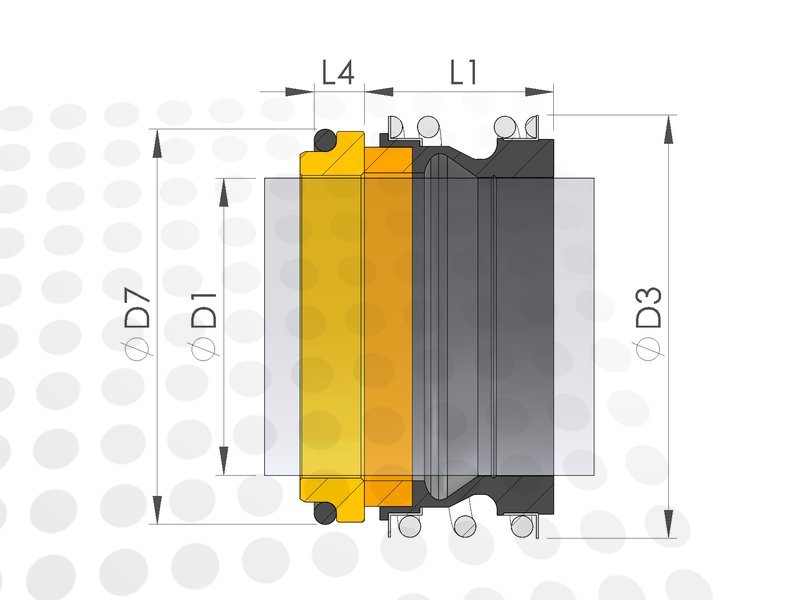

| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB01ST06 product group.
Alternatives
The Qseals 2C-QRB01ST06-0680-SSE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
