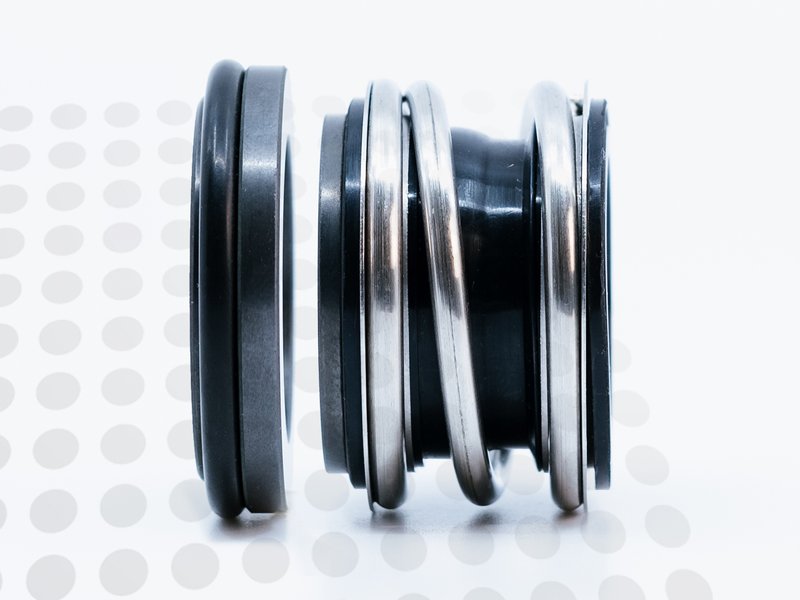

The Qseals 2C-QRB01ST06-0900-CUE is part of the QRB01ST06 group and is designed for 90 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Ceramic (CER) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B09SSU-ABY1-0900, Anga 90 A1/A5 - BVEGG, Anga 90 A41/A5 - BVEGG, and 5 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB01ST06 |
| SKU | 2C-QRB01ST06-0900-CUE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

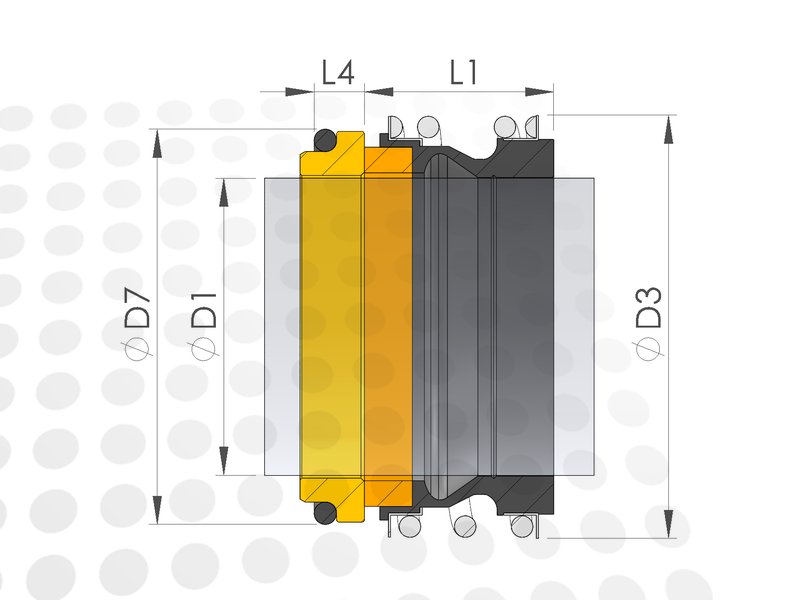

Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 90 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Ceramic (CER) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB01ST06 product group.
Alternatives
The Qseals 2C-QRB01ST06-0900-CUE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
