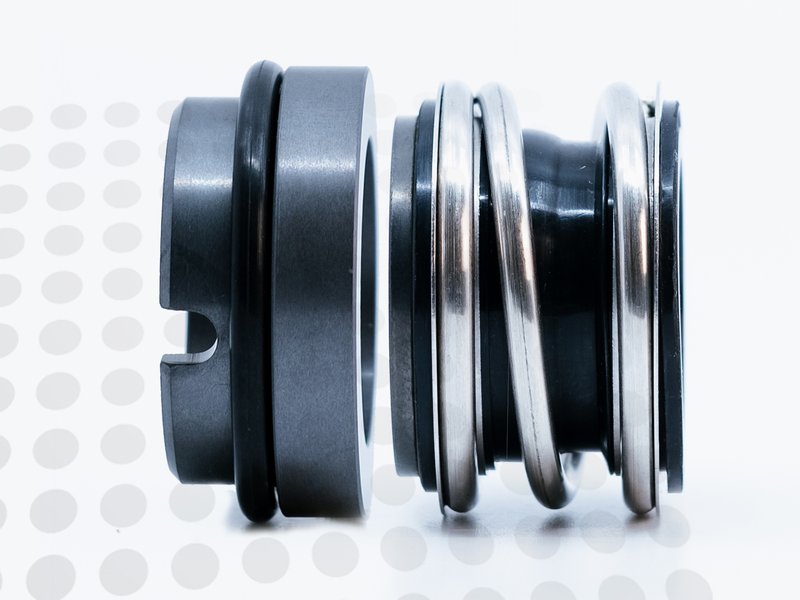

The Qseals 2C-QRB01ST09-0320-SSN is part of the QRB01ST09 group and is designed for 32 mm shaft applications. It features a silicon carbide rotary face paired with a silicon carbide stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-B02SL-DDX1-0320, Anga 32 A1/A0 - QQPGG, Anga 32 A41/A0 - QQPGG, and 3 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB01ST09 |
| SKU | 2C-QRB01ST09-0320-SSN |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 32 mm |
| Rotary face | Silicon Carbide |
| Stationary face | Silicon Carbide |
| Elastomers | NBR |

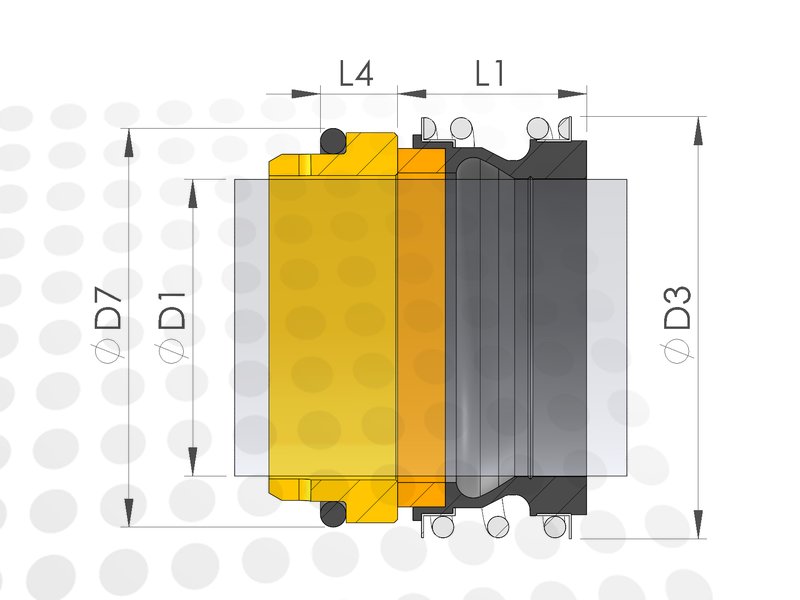

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB01ST09-0320-SSN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B02SL-DDX1-0320 |
| Anga | 32 A1/A0 - QQPGG |
| Anga | 32 A41/A0 - QQPGG |
| Burgmann | MG1/32-G9 Q1Q1PGG |
| LATTY | 524 032 U3 U3 N |
| Vulcan | 0320.19L.N.SS. |
