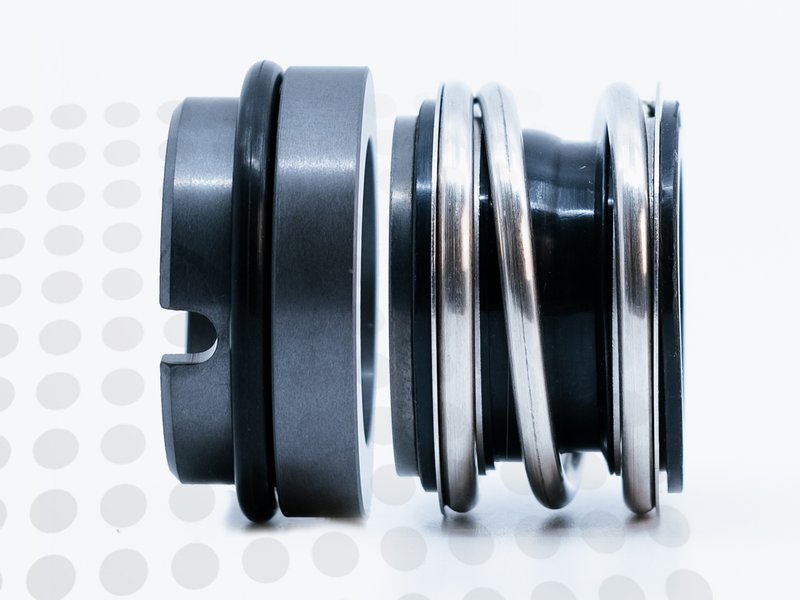

The Qseals 2C-QRB01ST09-0700-SSE is part of the QRB01ST09 group and is designed for 70 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B02SL-DDY1-0700, Anga 70 A1/A0 - QQEGG, Anga 70 A41/A0 - QQEGG, and 3 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB01ST09 |
| SKU | 2C-QRB01ST09-0700-SSE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 70 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |

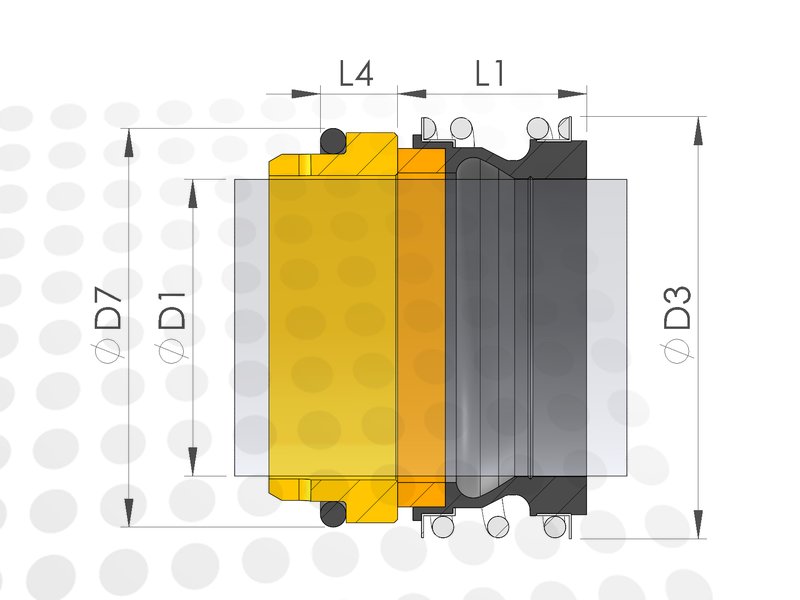

| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB01ST09 product group.
Alternatives
The Qseals 2C-QRB01ST09-0700-SSE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B02SL-DDY1-0700 |
| Anga | 70 A1/A0 - QQEGG |
| Anga | 70 A41/A0 - QQEGG |
| Burgmann | MG1/70-G9 Q1Q1EGG |
| LATTY | 524 070 U3 U3 EP |
| Vulcan | 0700.19L.E.SS. |
