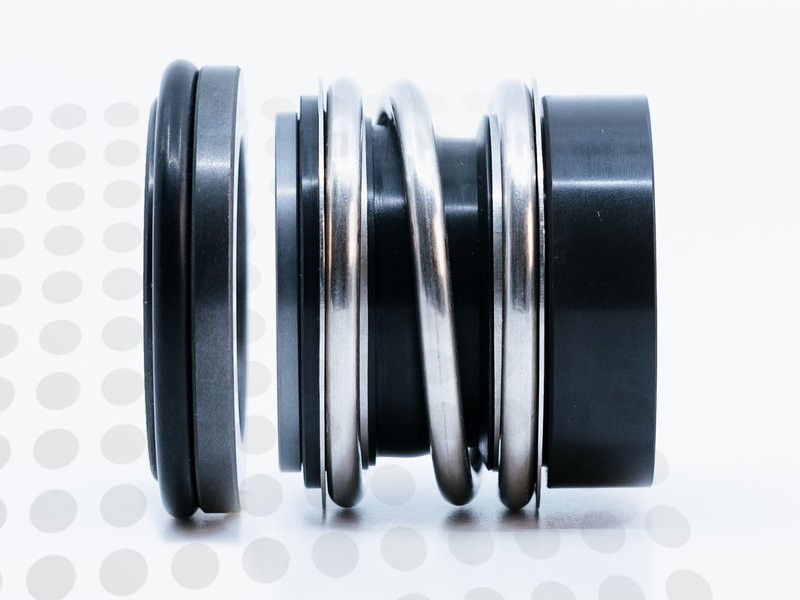

The Qseals 2C-QRB02ST06-0160-CSN is part of the QRB02ST06 group and is designed for 16 mm shaft applications. It features a carbon rotary face paired with a silicon carbide stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-B012SS-ADX1-0160, AES N-B092SSU-ADX1-0160, Anga 16 A4/A5 - BQPGG, and 4 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB02ST06 |
| SKU | 2C-QRB02ST06-0160-CSN |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 16 mm |
| Rotary face | Carbon |
| Stationary face | Silicon Carbide |
| Elastomers | NBR |

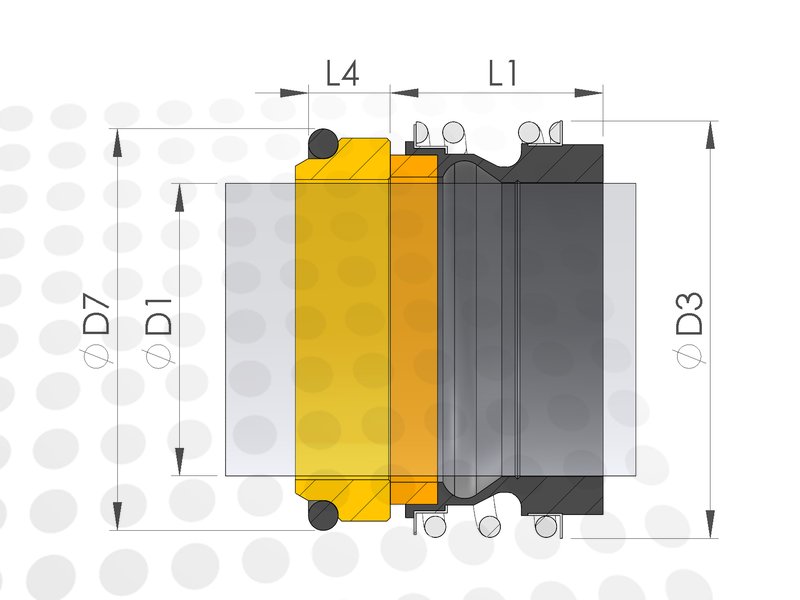

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB02ST06-0160-CSN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B012SS-ADX1-0160 |
| AES | N-B092SSU-ADX1-0160 |
| Anga | 16 A4/A5 - BQPGG |
| Burgmann | MG12/16-G6 BQ1PGG |
| Flowserve | P1928SM016BQ2PG |
| LATTY | 522 016 B U3 N |
| Vulcan | 0160.192S.N.D. |
Applications
The Qseals 2C-QRB02ST06-0160-CSN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| KSB | Movitec VF 10-21 |
