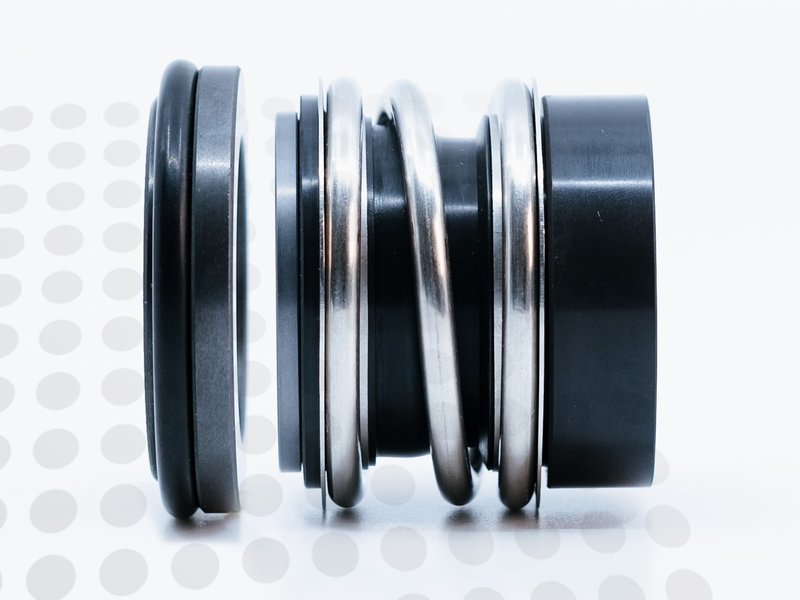

The Qseals 2C-QRB02ST06-0280-SSE is part of the QRB02ST06 group and is designed for 28 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B012SS-DDY1-0280, AES N-B092SSU-DDY1-0280, Anga 28 A4/A5 - QQEGG, and 5 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB02ST06 |
| SKU | 2C-QRB02ST06-0280-SSE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

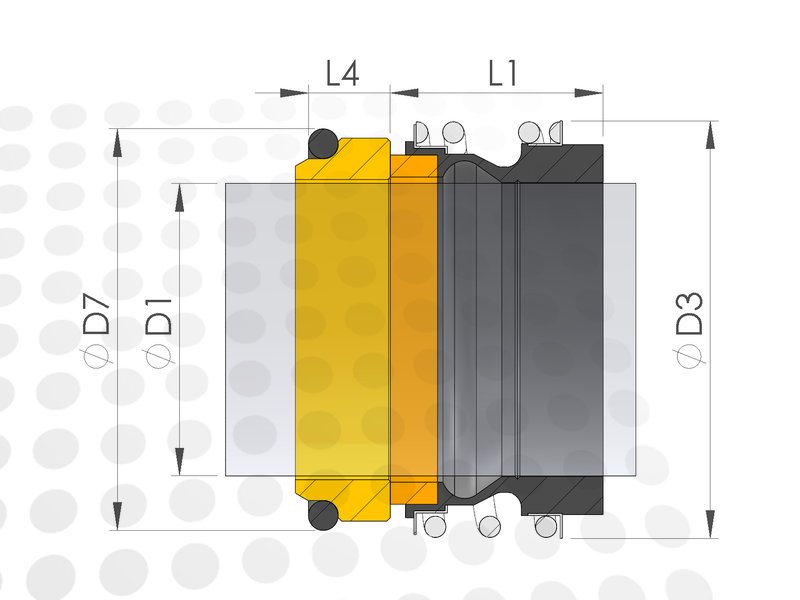

| Shaft size (D1) | 28 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB02ST06 product group.
Alternatives
The Qseals 2C-QRB02ST06-0280-SSE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
Applications
The Qseals 2C-QRB02ST06-0280-SSE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| TRAIVANI | TRHE 40-110 |
| TRAIVANI | TRMA 32-25 |
| TRAIVANI | TRMB 32-75 |
| TRAIVANI | TRSE 40 |
| APV | SRG103 |
| Hilge | HYGIA-Super II /50B |
