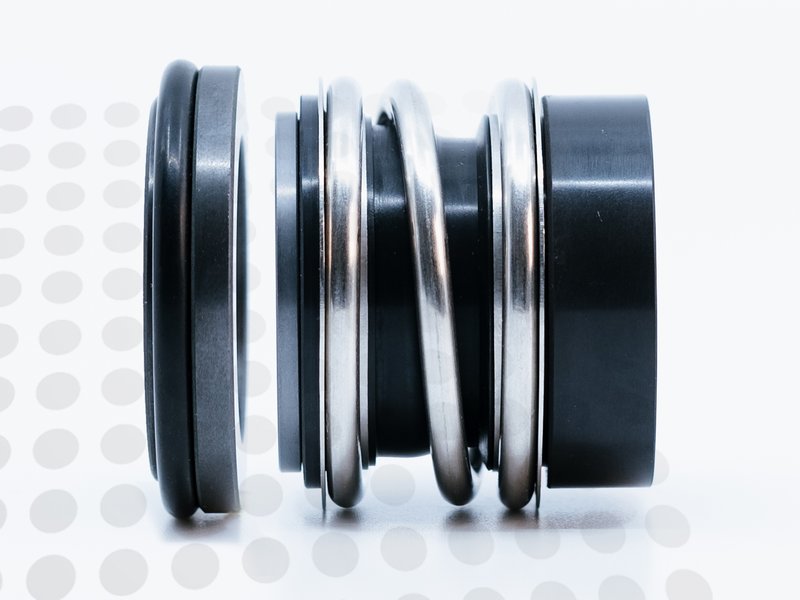

The Qseals 2C-QRB02ST06-0550-CSN is part of the QRB02ST06 group and is designed for 55 mm shaft applications. It features a carbon rotary face paired with a silicon carbide stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for 2 AES models, Anga, Burgmann, 7 Flowserve models, LATTY, and Vulcan.
| Brand | Qseals |
|---|---|
| Group | QRB02ST06 |
| SKU | 2C-QRB02ST06-0550-CSN |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 55 mm |
| Rotary face | Carbon |
| Stationary face | Silicon Carbide |
| Elastomers | NBR |
| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB02ST06-0550-CSN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
Applications
The Qseals 2C-QRB02ST06-0550-CSN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
