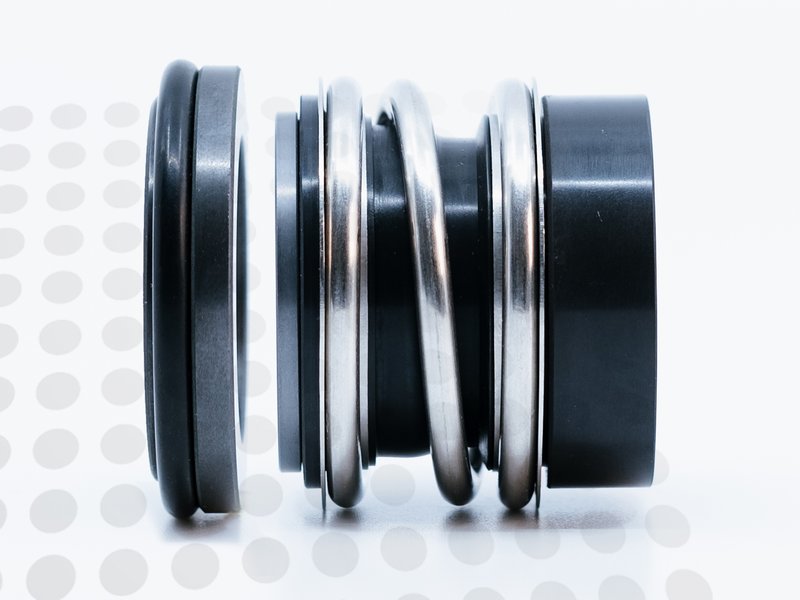

The Qseals 2C-QRB02ST06-0700-CUV is part of the QRB02ST06 group and is designed for 70 mm shaft applications. It features a carbon rotary face paired with a ceramic stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-B012SS-ABZ1-0700, AES N-B092SSU-ABZ1-0700, Anga 70 A4/A5 - BVVGG, and 6 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB02ST06 |
| SKU | 2C-QRB02ST06-0700-CUV |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 70 mm |
| Rotary face | Carbon |
| Stationary face | Ceramic |
| Elastomers | Viton |

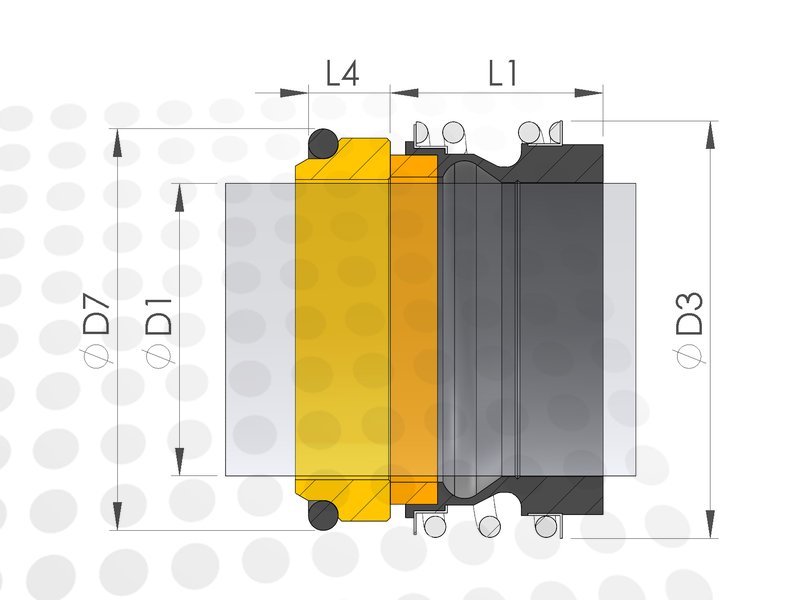

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB02ST06-0700-CUV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
Applications
The Qseals 2C-QRB02ST06-0700-CUV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Packo | ICP3/200-315/370 6 |
| Brand | SKU |
|---|
