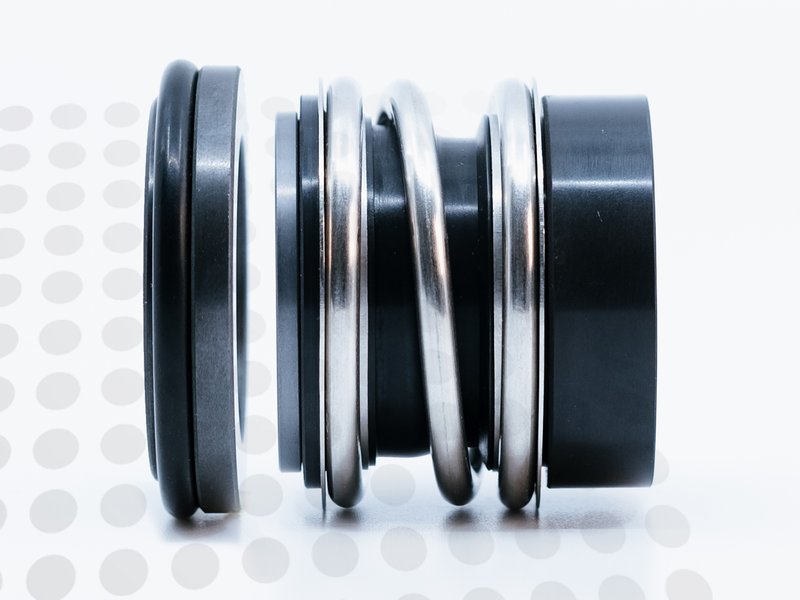

The Qseals 2C-QRB02ST06-0900-CSV is part of the QRB02ST06 group and is designed for 90 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-B092SSU-ADZ1-0900, Anga 90 A4/A5 - BQVGG, Burgmann MG12/90-G6 BQ1VGG, and 4 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB02ST06 |
| SKU | 2C-QRB02ST06-0900-CSV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

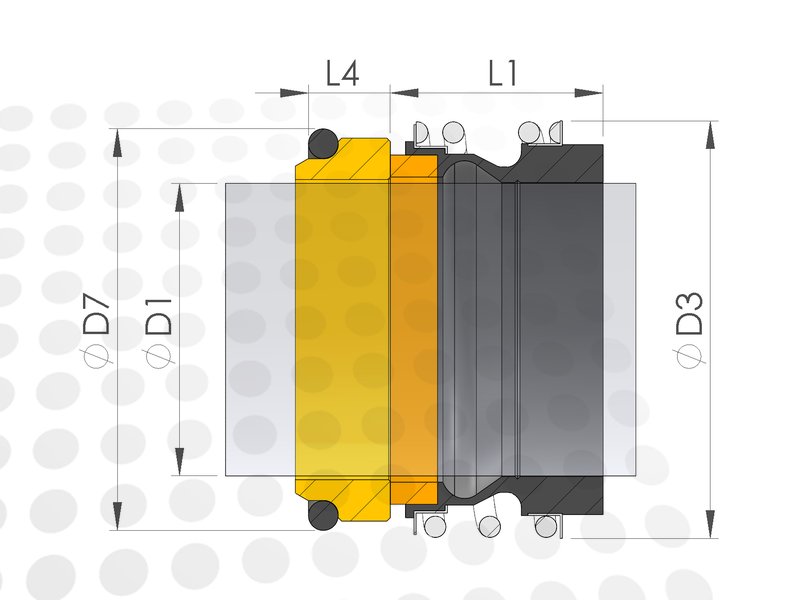

| Shaft size (D1) | 90 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB02ST06 product group.
Alternatives
The Qseals 2C-QRB02ST06-0900-CSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B092SSU-ADZ1-0900 |
| Anga | 90 A4/A5 - BQVGG |
| Burgmann | MG12/90-G6 BQ1VGG |
| Flowserve | P1928SM090BQ2VG |
| Fluiten | EB12 + CS 090 Z31U31VEE |
| LATTY | 522 090 B U3 V |
| Vulcan | 0900.192S.V.D. |
