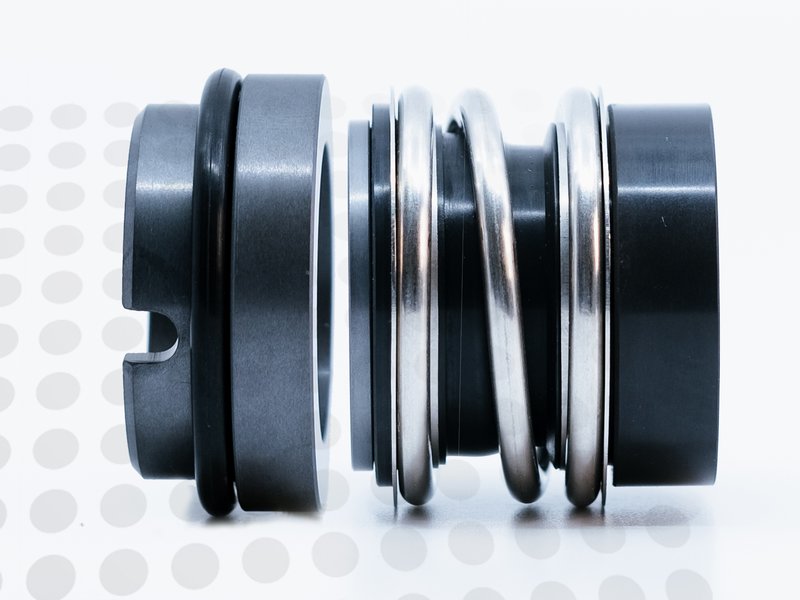

The Qseals 2C-QRB02ST09-0150-CSV is part of the QRB02ST09 group and is designed for 15 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the Anga 15 A4/A0 - BQVGG and Burgmann MG12/15-G9 BQ1VGG.
| Brand | Qseals |
|---|---|
| Group | QRB02ST09 |
| SKU | 2C-QRB02ST09-0150-CSV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

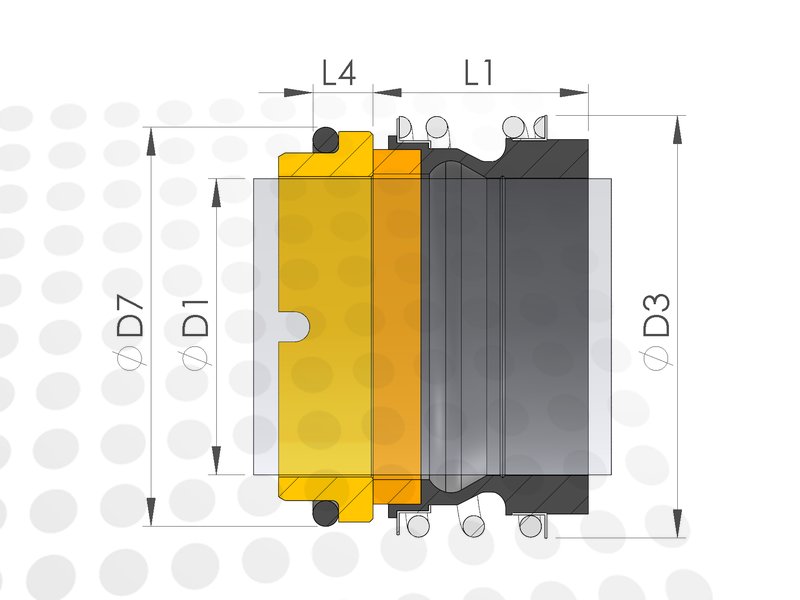

| Shaft size (D1) | 15 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Temperature Limit | 205 °C |
Other size or material combination?
Search within the Qseals QRB02ST09 product group.
Alternatives
The Qseals 2C-QRB02ST09-0150-CSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| Anga | 15 A4/A0 - BQVGG |
| Burgmann | MG12/15-G9 BQ1VGG |
