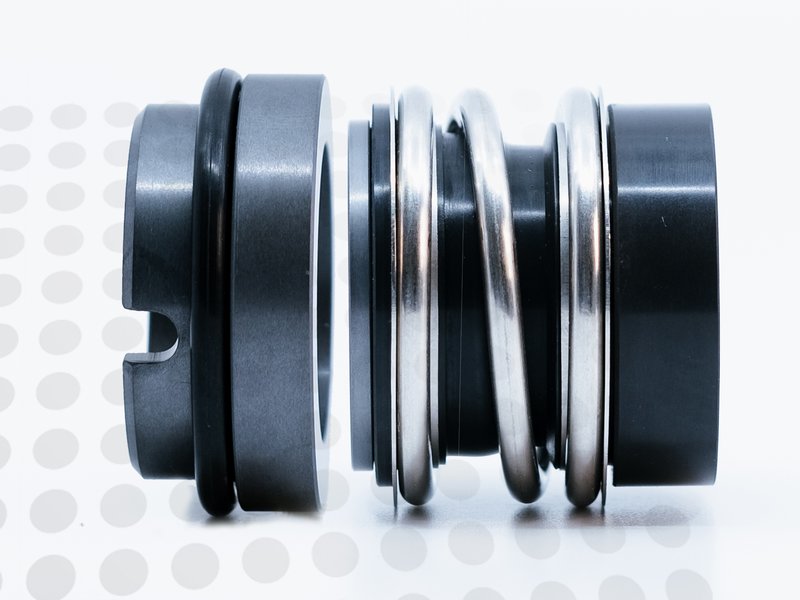

The Qseals 2C-QRB02ST09-0900-CUN is part of the QRB02ST09 group and is designed for 90 mm shaft applications. It features a carbon rotary face paired with a ceramic stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-B012SL-ADX1-0900, Anga 90 A4/A0 - BVPGG, Burgmann MG12/90-G9 BVPGG, and Vulcan 0900.192L.N.C..
| Brand | Qseals |
|---|---|
| Group | QRB02ST09 |
| SKU | 2C-QRB02ST09-0900-CUN |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 90 mm |
| Rotary face | Carbon |
| Stationary face | Ceramic |
| Elastomers | NBR |

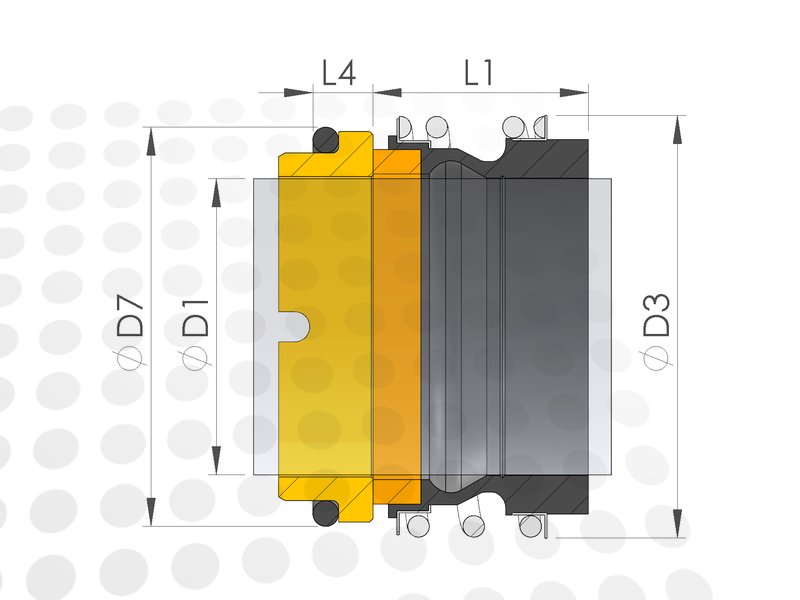

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB02ST09-0900-CUN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B012SL-ADX1-0900 |
| Anga | 90 A4/A0 - BVPGG |
| Burgmann | MG12/90-G9 BVPGG |
| Vulcan | 0900.192L.N.C. |
