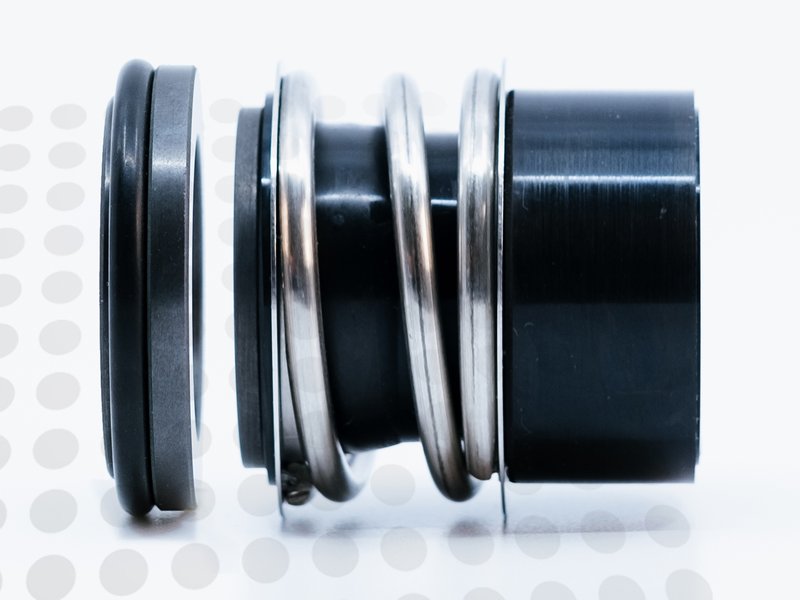

The Qseals 2C-QRB03ST06-0450-CSV is part of the QRB03ST06 group and is designed for 45 mm shaft applications. It features a carbon rotary face paired with a silicon carbide stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-B013SS-ADZ1-0450, AES N-B093SSU-ADZ1-0450, Burgmann MG13/45-G6 BQ1VGG, and 3 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB03ST06 |
| SKU | 2C-QRB03ST06-0450-CSV |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 45 mm |
| Rotary face | Carbon |
| Stationary face | Silicon Carbide |
| Elastomers | Viton |

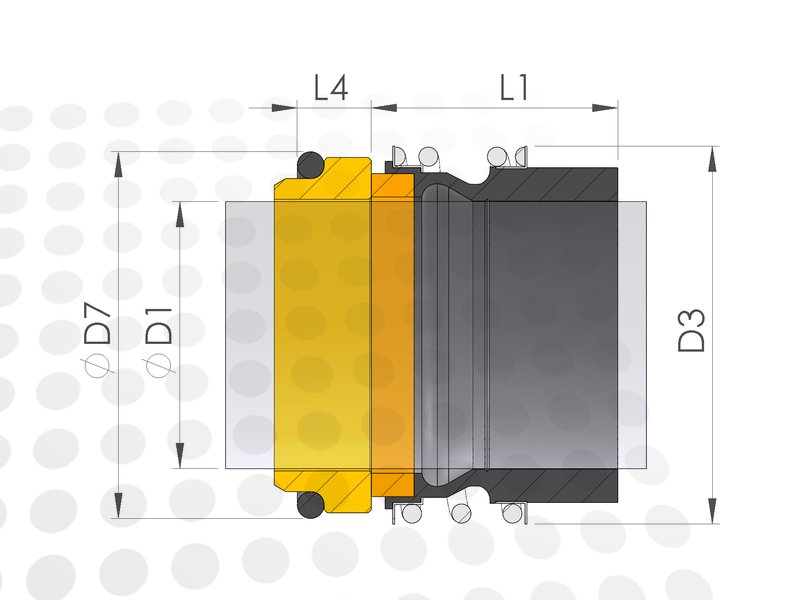

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB03ST06-0450-CSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B013SS-ADZ1-0450 |
| AES | N-B093SSU-ADZ1-0450 |
| Burgmann | MG13/45-G6 BQ1VGG |
| Fluiten | EB13 + CS 045 Z31U31VEE |
| LATTY | 523 045 B U3 V |
| Vulcan | 0450.193S.V.D. |
