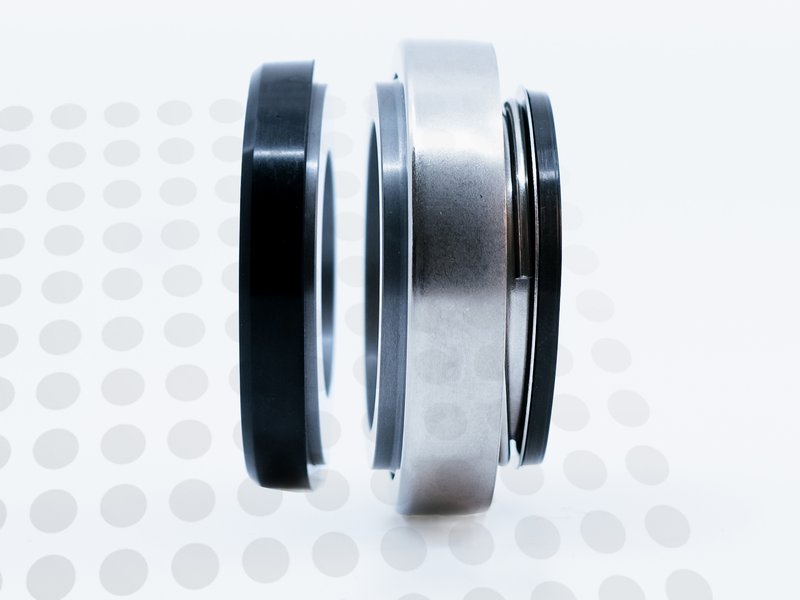

The Qseals 2C-QRB05STS-0110-SSN is part of the QRB05STS group and is designed for 11 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-B01-DDX1-0110, Burgmann BT-AR/11-00 Q1Q1PGG, Flowserve P118M011Q2Q2PGG, and 5 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB05STS |
| SKU | 2C-QRB05STS-0110-SSN |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications

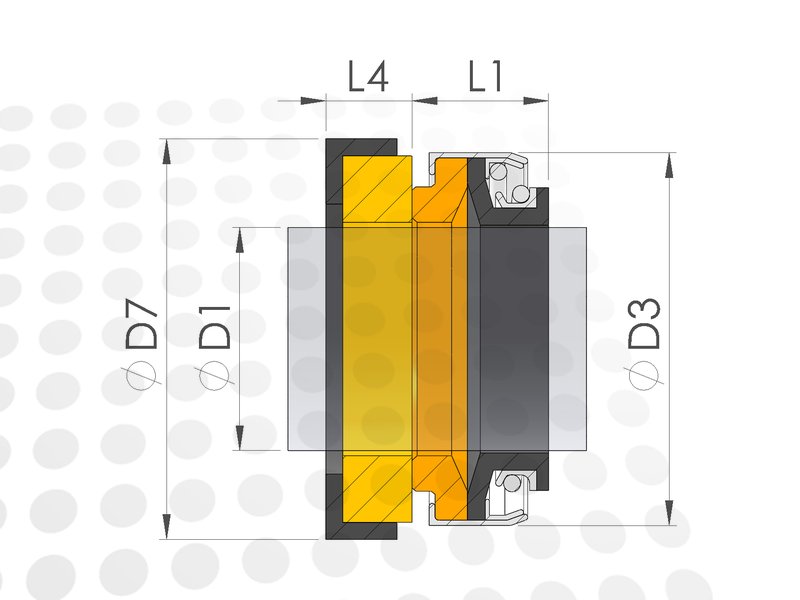

| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 11 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | NBR (NITRILE) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB05STS product group.
Alternatives
The Qseals 2C-QRB05STS-0110-SSN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B01-DDX1-0110 |
| Burgmann | BT-AR/11-00 Q1Q1PGG |
| Flowserve | P118M011Q2Q2PGG |
| Fluiten | EB3 + Q3 011 U32U31GEE |
| Ricambi | 0110-BV-QQP |
| Ricambi | 0110-BW-QQP |
| Ricambi | 0110-BX-QQP |
| Vulcan | 0110.18.N.S. |
