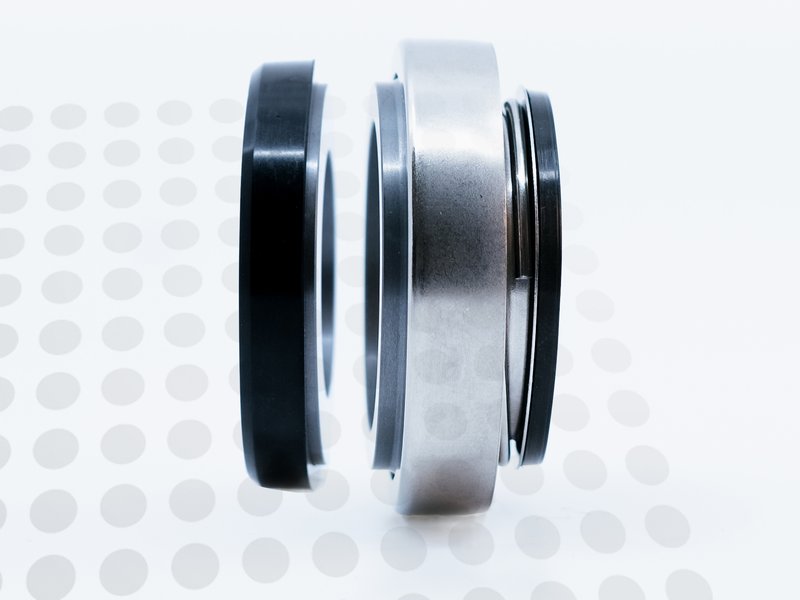

The Qseals 2C-QRB05STS-0254-CUE is part of the QRB05STS group and is designed for 25.4 mm shaft applications. It features a carbon rotary face paired with a ceramic stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B01-ABY1-0254, Flowserve P1181000BVEGG, Fluiten EB3 + Q3 0254 Z32CDEE, and Vulcan 0254.18.E.C..
| Brand | Qseals |
|---|---|
| Group | QRB05STS |
| SKU | 2C-QRB05STS-0254-CUE |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 25.4 mm |
| Rotary face | Carbon |
| Stationary face | Ceramic |
| Elastomers | EPDM |

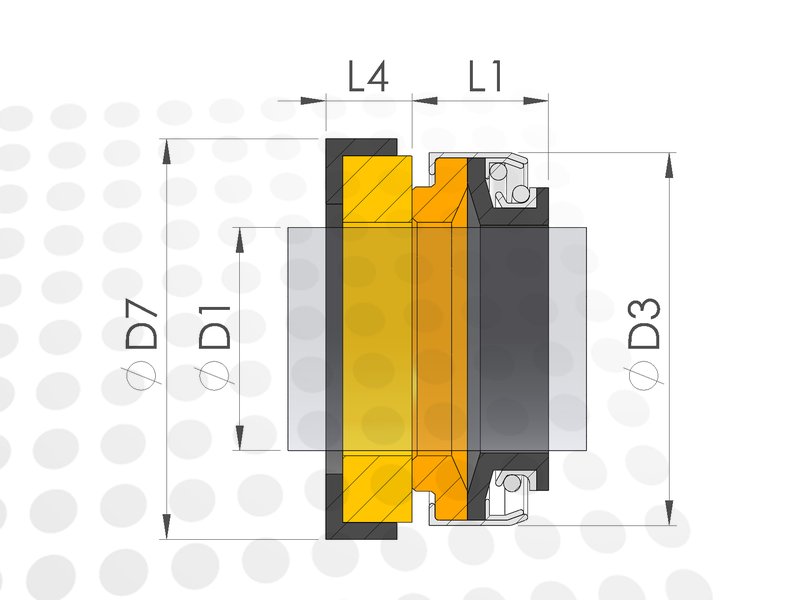

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB05STS-0254-CUE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B01-ABY1-0254 |
| Flowserve | P1181000BVEGG |
| Fluiten | EB3 + Q3 0254 Z32CDEE |
| Vulcan | 0254.18.E.C. |
