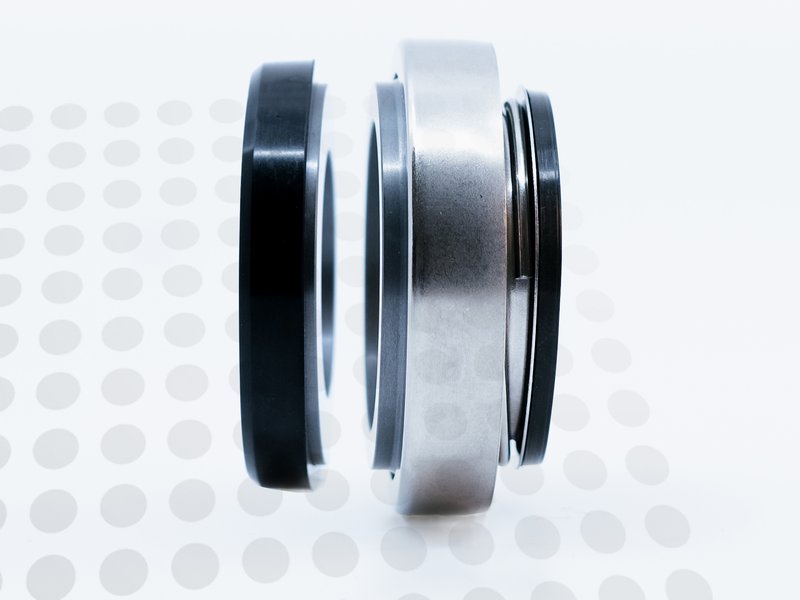

The Qseals 2C-QRB05STS-0350-CUE is part of the QRB05STS group and is designed for 35 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Ceramic (CER) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B01-ABY1-0350, Burgmann BT-AR/35-00 BVEGG, Flowserve P118M035BVEGG, and 5 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB05STS |
| SKU | 2C-QRB05STS-0350-CUE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

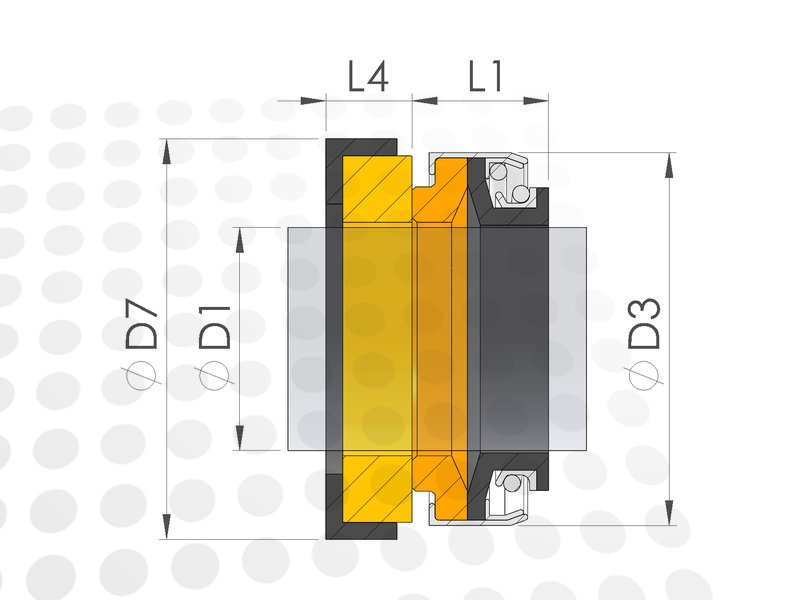

| Shaft size (D1) | 35 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Ceramic (CER) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB05STS product group.
Alternatives
The Qseals 2C-QRB05STS-0350-CUE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B01-ABY1-0350 |
| Burgmann | BT-AR/35-00 BVEGG |
| Flowserve | P118M035BVEGG |
| Fluiten | EB3 + Q3 035 Z32CDEE |
| Ricambi | 0350-BV-BVE |
| Ricambi | 0350-BW-BVE |
| Ricambi | 0350-BX-BVE |
| Vulcan | 0350.18.E.C. |
Applications
The Qseals 2C-QRB05STS-0350-CUE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Caprari | KKM150L1322A-V |
| IDEAL | ARS 100-27 |
| Mengin | PS.65.165 |
| Mengin | PS.65.175 |
| Mengin | PS.65.195 |
