The Qseals 2C-QRB05STS-0350-SSE is part of the QRB05STS group and is designed for 35 mm shaft applications. It features a silicon carbide rotary face paired with a silicon carbide stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B01-DDY1-0350, Burgmann BT-AR/35-00 Q1Q1EGG, Flowserve P118M035Q2Q2EGG, and 5 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB05STS |
| SKU | 2C-QRB05STS-0350-SSE |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 35 mm |
| Rotary face | Silicon Carbide |
| Stationary face | Silicon Carbide |
| Elastomers | EPDM |

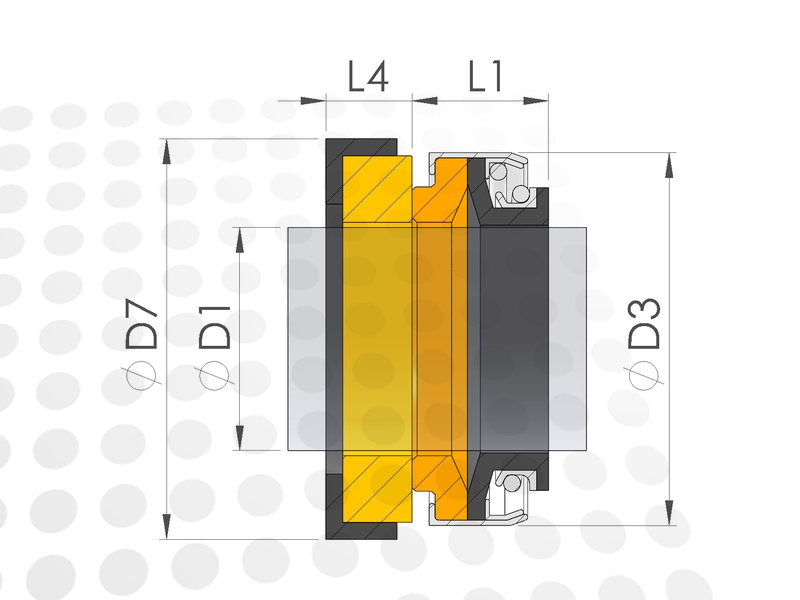

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB05STS-0350-SSE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B01-DDY1-0350 |
| Burgmann | BT-AR/35-00 Q1Q1EGG |
| Flowserve | P118M035Q2Q2EGG |
| Fluiten | EB3 + Q3 035 U32U31DEE |
| Ricambi | 0350-BV-QQE |
| Ricambi | 0350-BW-QQE |
| Ricambi | 0350-BX-QQE |
| Vulcan | 0350.18.E.S. |
Applications
The Qseals 2C-QRB05STS-0350-SSE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Caprari | KKM150L1322A-V |
| IDEAL | ARS 100-27 |
| Mengin | PS.65.165 |
