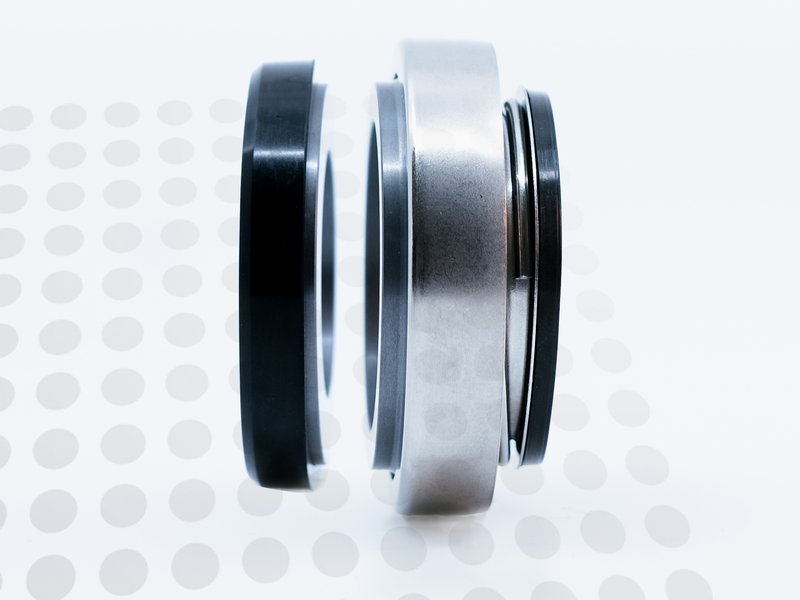

The Qseals 2C-QRB05STS-0400-CUN is part of the QRB05STS group and is designed for 40 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Ceramic (CER) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for AES, Burgmann, Flowserve, Fluiten, Gilkes, 3 Ricambi models, Varisco, and Vulcan.
| Brand | Qseals |
|---|---|
| Group | QRB05STS |
| SKU | 2C-QRB05STS-0400-CUN |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

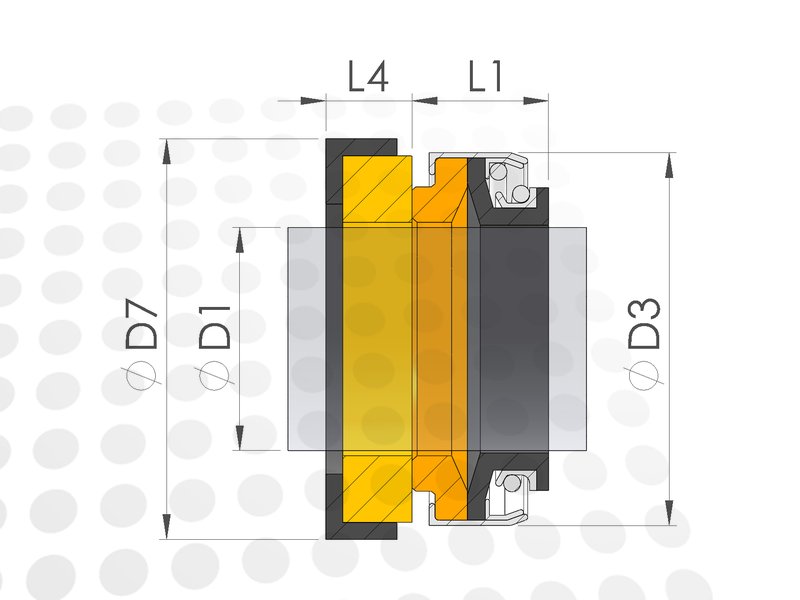

Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 40 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Ceramic (CER) |
| Elastomers | NBR (NITRILE) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB05STS product group.
Alternatives
The Qseals 2C-QRB05STS-0400-CUN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
Applications
The Qseals 2C-QRB05STS-0400-CUN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| New Haden | ?Upper seal |
| Cri-Man | PTS 9-100 |
| KSB | ERT E 65-200 |
