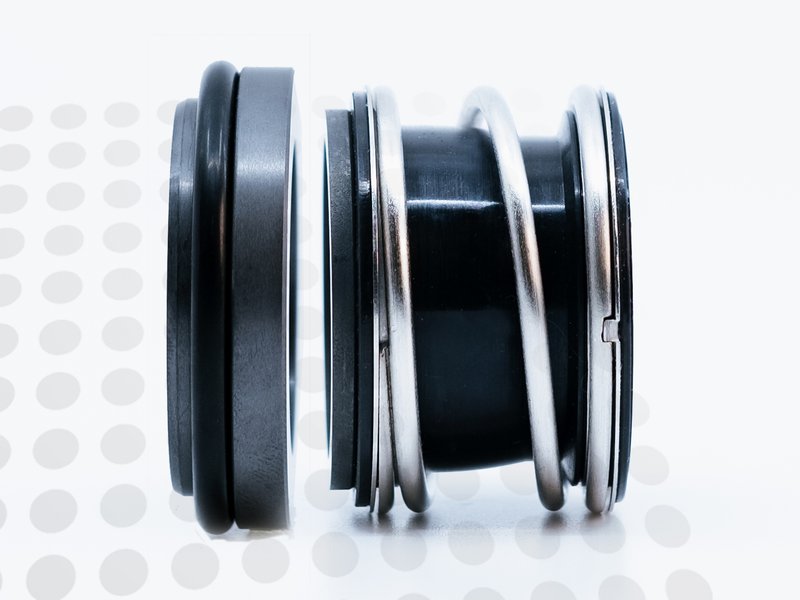

The Qseals 2C-QRB06ST07-0800-CSN is part of the QRB06ST07 group and is designed for 80 mm shaft applications. It features a carbon rotary face paired with a silicon carbide stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES N-B05S-ADX1-0800, AES N-B09SU-ADX1-0800, and Vulcan 0800.14DINS.N.D..
| Brand | Qseals |
|---|---|
| Group | QRB06ST07 |
| SKU | 2C-QRB06ST07-0800-CSN |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 80 mm |
| Rotary face | Carbon |
| Stationary face | Silicon Carbide |
| Elastomers | NBR |

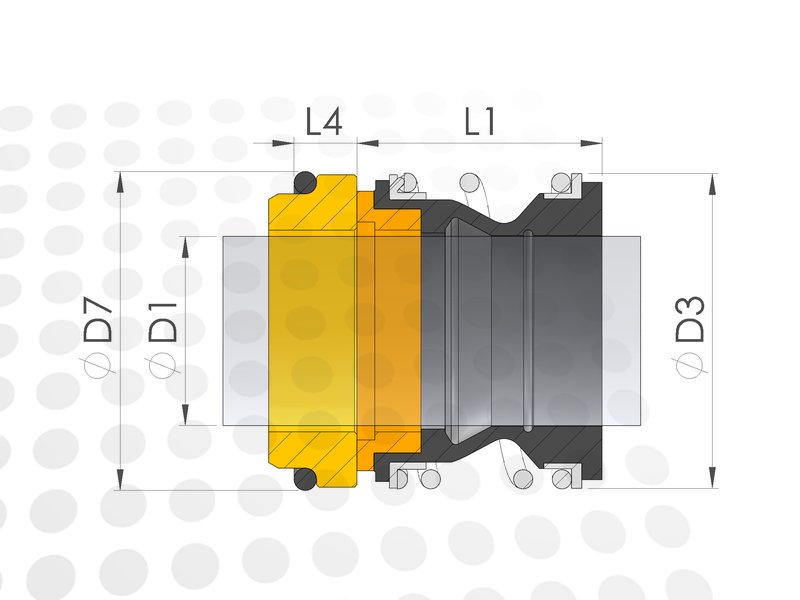

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB06ST07-0800-CSN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B05S-ADX1-0800 |
| AES | N-B09SU-ADX1-0800 |
| Vulcan | 0800.14DINS.N.D. |
Applications
The Qseals 2C-QRB06ST07-0800-CSN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| ABS | AF 1320-4 |
| ABS | AF 300-10 |
| ABS | AFP-1552 ME750/4-52 |
| ABS | AFP-1552 ME900/4 |
| ABS | VUP 0501 |
