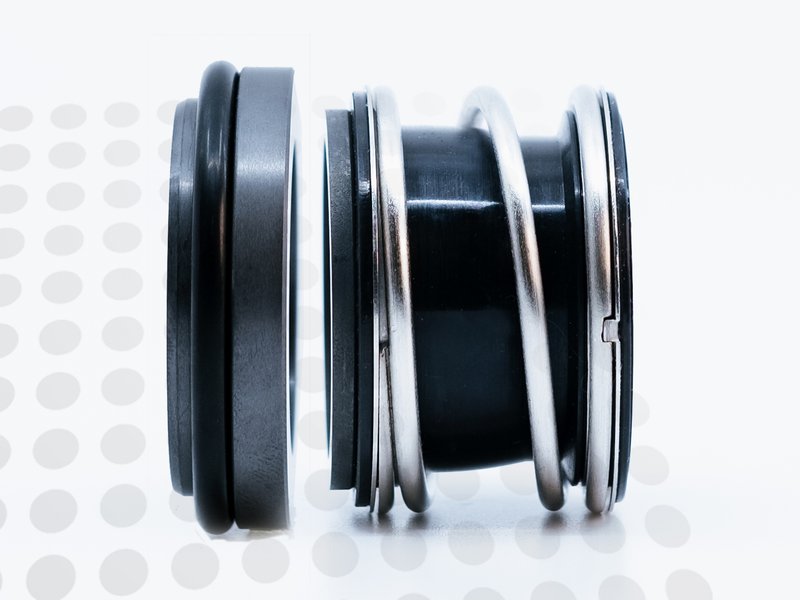

The Qseals 2C-QRB06ST07-0800-SSV is part of the QRB06ST07 group and is designed for 80 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-B05S-DDZ1-0800, AES N-B09SU-DDZ1-0800, and Vulcan 0800.14DINS.V.S..
| Brand | Qseals |
|---|---|
| Group | QRB06ST07 |
| SKU | 2C-QRB06ST07-0800-SSV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 80 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |

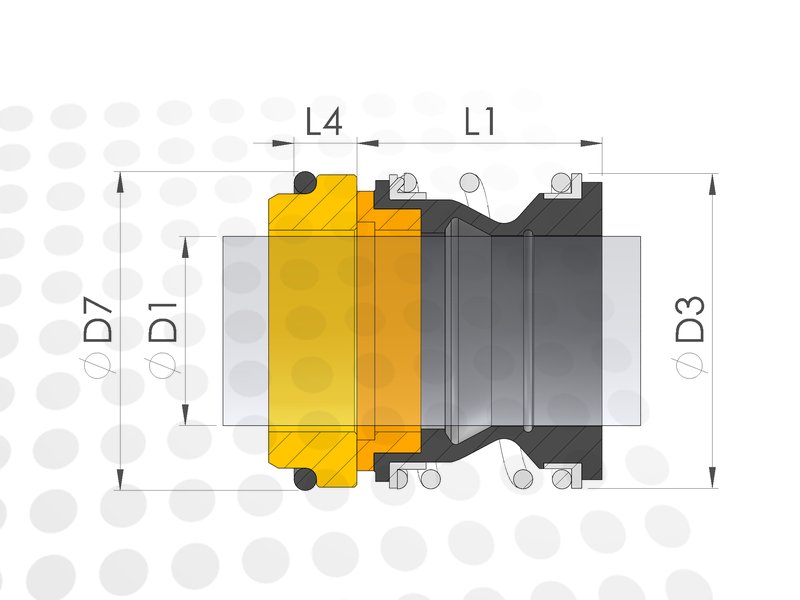

| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB06ST07 product group.
Alternatives
The Qseals 2C-QRB06ST07-0800-SSV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B05S-DDZ1-0800 |
| AES | N-B09SU-DDZ1-0800 |
| Vulcan | 0800.14DINS.V.S. |
Applications
The Qseals 2C-QRB06ST07-0800-SSV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| ABS | AF 1320-4 |
| ABS | AF 300-10 |
| ABS | AFP-1552 ME750/4-52 |
| ABS | AFP-1552 ME900/4 |
| ABS | VUP 0501 |
| ABS | VUP 0502 |
| ABS | VUP 0503 |
| ABS | VUP 0601 M750-6/54 |
| ABS | VUP 0602 |
