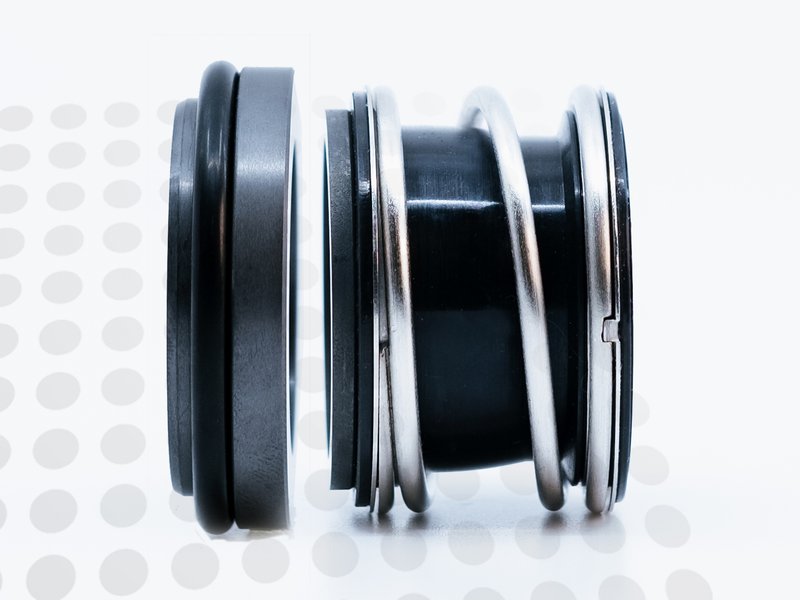

The Qseals 2C-QRB06ST07-0850-CSE is part of the QRB06ST07 group and is designed for 85 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B05S-ADY1-0850, AES N-B09SU-ADY1-0850, and Vulcan 0850.14DINS.E.D..
| Brand | Qseals |
|---|---|
| Group | QRB06ST07 |
| SKU | 2C-QRB06ST07-0850-CSE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

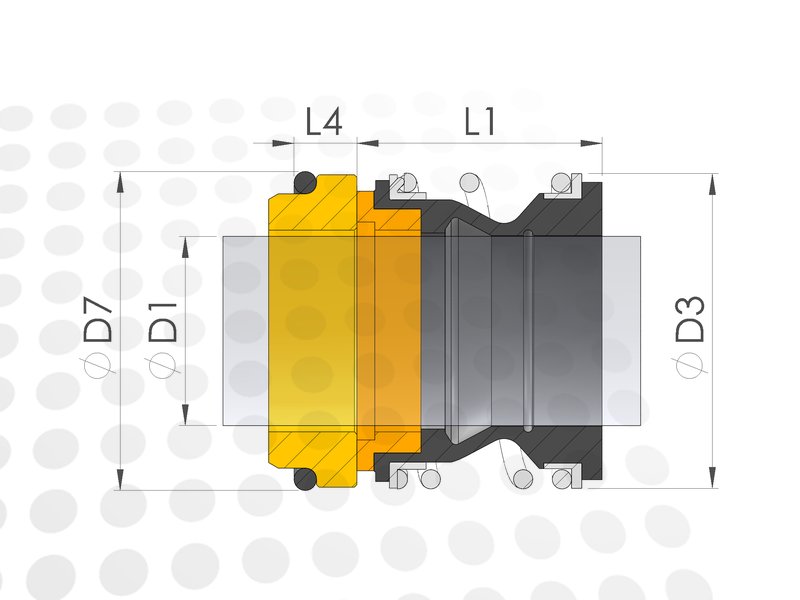

Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 85 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB06ST07 product group.
Alternatives
The Qseals 2C-QRB06ST07-0850-CSE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B05S-ADY1-0850 |
| AES | N-B09SU-ADY1-0850 |
| Vulcan | 0850.14DINS.E.D. |
