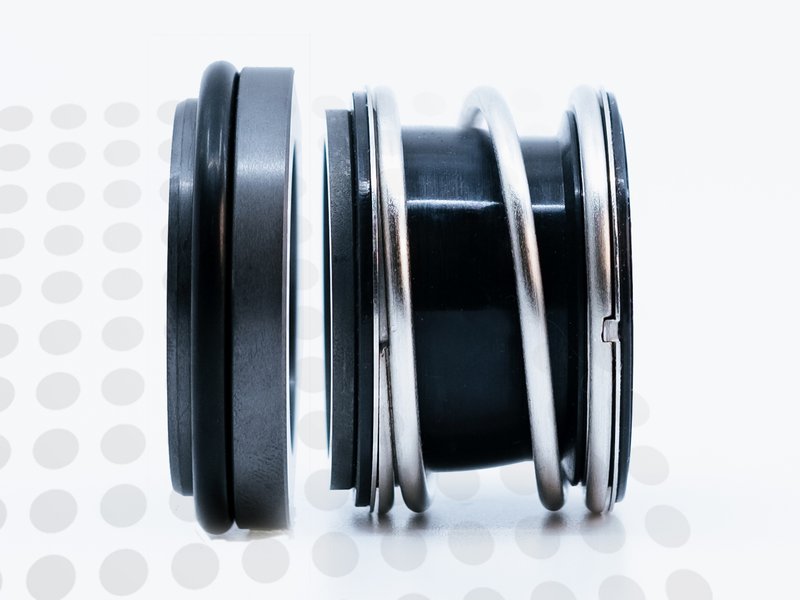

The Qseals 2C-QRB06ST07-0900-CUE is part of the QRB06ST07 group and is designed for 90 mm shaft applications. It features a carbon rotary face paired with a ceramic stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B05S-ADZ1-0900, AES N-B09SU-ABY1-0900, and Vulcan 0900.14DINS.E.C..
| Brand | Qseals |
|---|---|
| Group | QRB06ST07 |
| SKU | 2C-QRB06ST07-0900-CUE |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 90 mm |
| Rotary face | Carbon |
| Stationary face | Ceramic |
| Elastomers | EPDM |

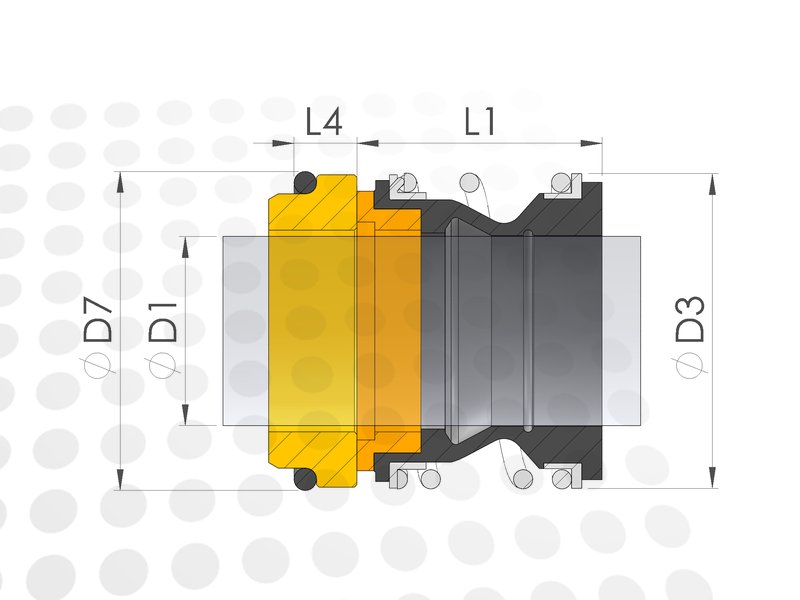

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB06ST07-0900-CUE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B05S-ADZ1-0900 |
| AES | N-B09SU-ABY1-0900 |
| Vulcan | 0900.14DINS.E.C. |
