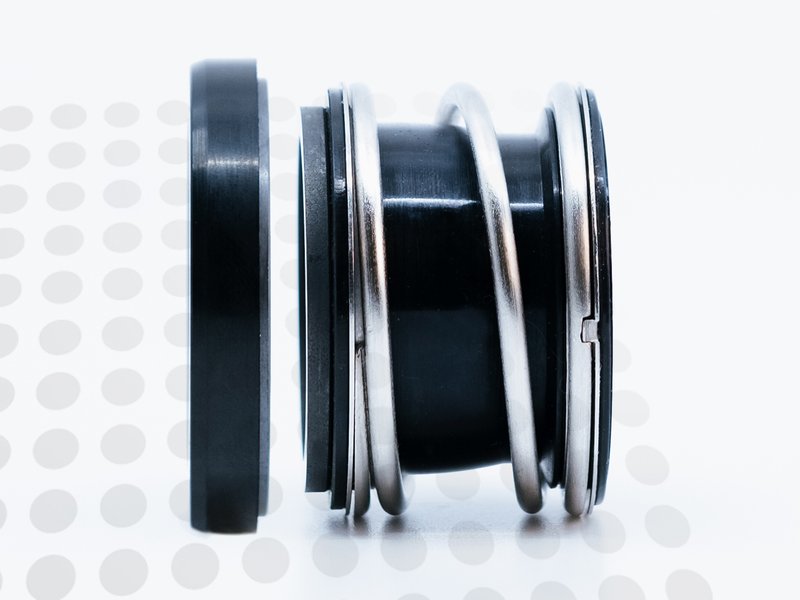

The Qseals 2C-QRB06ST60-0120-CSE is part of the QRB06ST60 group and is designed for 12 mm shaft applications. It features a carbon rotary face paired with a silicon carbide stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B05-ADY1-0120, Flowserve P140B9M012BQ2EGG, Fluiten EB2 + Q 012 Z31U31DEE, and 2 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QRB06ST60 |
| SKU | 2C-QRB06ST60-0120-CSE |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 12 mm |
| Rotary face | Carbon |
| Stationary face | Silicon Carbide |
| Elastomers | EPDM |

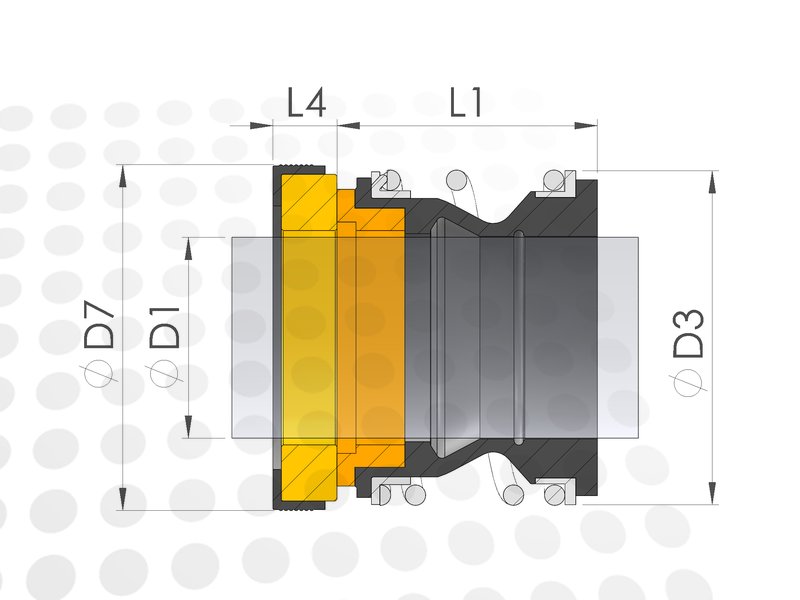

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Alternatives
The Qseals 2C-QRB06ST60-0120-CSE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B05-ADY1-0120 |
| Flowserve | P140B9M012BQ2EGG |
| Fluiten | EB2 + Q 012 Z31U31DEE |
| LATTY | 531 012 B U3 EP |
| Vulcan | 0120.14DIN.E.D. |
