The Qseals 2C-QRB07ST07-0200-CSE is part of the QRB07ST07 group and is designed for 20 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-B052S-ADY1-0200, AES N-B092SU-ADY1-0200, and Vulcan 0200.142DINS.E.D..
| Brand | Qseals |
|---|---|
| Group | QRB07ST07 |
| SKU | 2C-QRB07ST07-0200-CSE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications

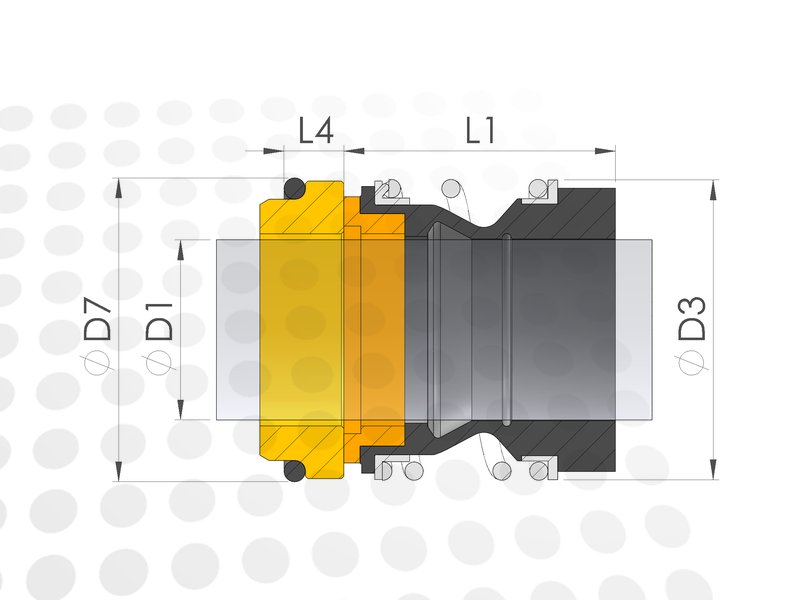

| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 20 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB07ST07 product group.
Alternatives
The Qseals 2C-QRB07ST07-0200-CSE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B052S-ADY1-0200 |
| AES | N-B092SU-ADY1-0200 |
| Vulcan | 0200.142DINS.E.D. |
