The Qseals 2C-QRB07ST07-0680-CUV is part of the QRB07ST07 group and is designed for 68 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Ceramic (CER) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-B052S-ABZ1-0680, AES N-B092SU-ABZ1-0680, and Vulcan 0680.142DINS.V.C..
| Brand | Qseals |
|---|---|
| Group | QRB07ST07 |
| SKU | 2C-QRB07ST07-0680-CUV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications

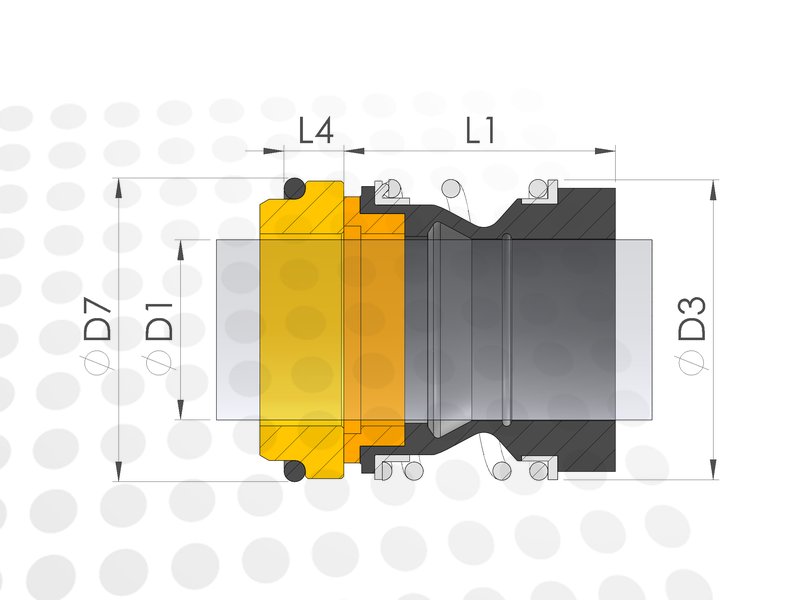

| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 68 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Ceramic (CER) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QRB07ST07 product group.
Alternatives
The Qseals 2C-QRB07ST07-0680-CUV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B052S-ABZ1-0680 |
| AES | N-B092SU-ABZ1-0680 |
| Vulcan | 0680.142DINS.V.C. |
